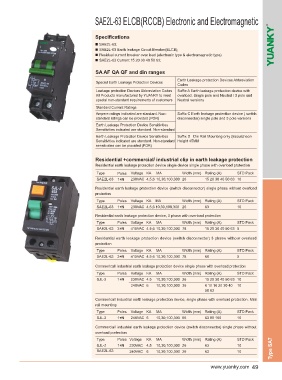

SAE2L-63 ELCB(RCCB) Electronic and Electromagnetic

Specifications

■ SAE2L-63;
■ SAE2L-63 Earth leakage Circuit Breaker(ELCB);
■ Residual current breaker over load (electronic type & electromagnetic type)
■ SAE2L-63 Current:15 20 30 40 50 63;

SA AF QA QF and din ranges
Earth Leakage protection Devices Abbreviation
Special Earth Leakage Protection Devices
Codes
Leakage protection Devices Abbreviation Codes Suffix A Earth leakage protection device with
All Products manufactured by YUANKY to meet overload. Single pole and Neutral / 3 pole and
special non-standard requirements of customers Neutral versions
Standard Current Ratings
Ampere ratings indicated are standard. Non- Suffix C Earth leakage protection device ( switch
standard ratings can be provided (POR) disconnector) single pole and 3 pole versions
Earth Leakage Protection Device Sensitivities
Sensitivities indicated are standard. Non-standard
Earth Leakage Protection Device Sensitivities Suffix D Din Rail Mounting only (Escutcheon
Sensitivities indicated are standard. Non-standard Height 45MM
sensitivities can be provided (POR)

Residential +commercial/ industrial clip in earth leakage protection
Residential earth leakage protection device single device single phase with overload protection
Type Poles Voltage KA MA Width (mm) Rating (A) STD Pack
SAE2L-63 1+N 230VAC 4.5,6 10,30,100,300 26 15 20 30 40 50 63 10
Residential earth leakage protection device (switch disconnector) single phase without overload
protecton
Type Poles Voltage KA MA Width (mm) Rating (A) STD Pack
SAE2L-63 1+N 230VAC 4.5,6 10,30,100,300 26 63 10
Residential earth leakage protection device, 3 phase with overload protection
Type Poles Voltage KA MA Width (mm) Rating (A) STD Pack
SAE2L-63 3+N 415VAC 4.5,6 10,30,100,300 78 15 20 30 40 50 63 5

Residential earth leakage protection device (switch disconnector) 3 phasw withour overload
protection
Type Poles Voltage KA MA Width (mm) Rating (A) STD Pack
SAE2L-63 3+N 415VAC 4.5,6 10,30,100,300 78 60 5

Commerical/ industrial earth leakage protection device single phase with overload protection
Type Poles Voltage KA MA Width (mm) Rating (A) STD Pack
SJL-2 1+N 230VAC 4.5 10,30,100,300 26 15 20 30 40 50 63 10
240VAC 6 10,30,100,300 36 6 10 16 20 30 40 10
50 63

Commerical/ industrial earth leakage protection device, single phase with overload protection. Mini
rail mounting
Type Poles Voltage KA MA Width (mm) Rating (A) STD Pack
SJL-2 1+N 240VAC 6 10,30,100,300 65 63 80 100 10
Commercial/ industrial earth leakage protection device (switch disconnector) single phase without
overload portection
Type Poles Voltage KA MA Width (mm) Rating (A) STD Pack
SJL-2 1+N 230VAC 4.5 10,30,100,300 26 63 10
SAE2L-63 240VAC 6 10,30,100,300 26 63 10 Type SA7
