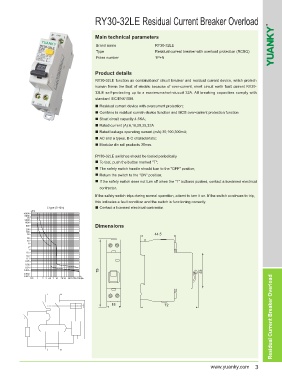

RY30-32LE Residual Current Breaker Overload

Main technical parameters

Brand name RY30-32LE
Type Residual current breaker with overload protection (RCBO)
Poles number 1P+N

Product details
RY30-32LE function as combinationof circuit breaker and residual current device, which protech
human fromn the fault of electric because of over-current, short circuit earth fault current RY30-
32LE self-protecting up to a maximumshort-ciucuit 32A. All breaking capacities comply with
standard IEC/EN61009.
■ Residual current device with overcurrent protection;
■ Combine in residual curretn device function and MCB over-current protection function
■ Short circuit capacity:4.5KA;
■ Rated current (A):6,16,20,25,32A
■ Rated leakage operating current (mA):30,100,300mA;
■ AC and a types, B-C characteristic;
■ Modular din rail products 35mm.

RY30-32LE switches should be tested periodically
■ To test, push the button marked "T";
■ The safety switch handle should turn to the "OFF" position;
■ Return the switch to the "ON" position;
■ If the safety switch does not turn off when the "T" buttonis pushed, contact a licednsed electrical
contractor.
If the safety switch trips during normal operation, attemt to turn it on. If the switch continues to trip,
this indicates a fault condition and the switch is functioning correctly.
■ Contact a licensed electrical contractor.

Dimensions
