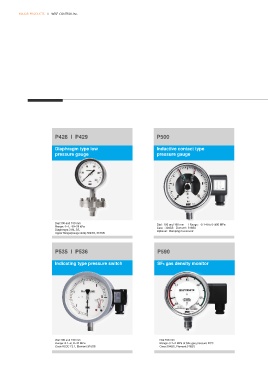

Page 22 - 2017 PQ

MAJOR PRODUCTS l WISE CONTROL.Inc.

P428 l P429 P500

Diaphragm type low Inductive contact type
pressure gauge pressure gauge

Dial:100 and 150 mm Dial : 100 and 160 mm l Range : -0.1~0 to 0~200 MPa
Range:-1~1, -35~35 kPa Case : 304SS Element : 316SS
Diaphragm:316L SS, Optional : Damping movement
Upper flange(Gauge side):304SS, 316SS

P535 l P536 P590

Indicating type pressure switch SF6 gas density monitor

Dial:100 and 150 mm Dial:100 mm
Range:-0.1~2, 0~35 MPa Range:-0.1~2 MPa at SF6 gas pressure 20ºC
Case:ALDC 12.1, Element:316SS Case:304SS, Element:316SS
