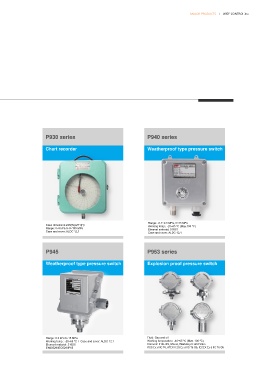

MAJOR PRODUCTS l WISE CONTROL.Inc.
P930 series P940 series
Chart recorder Weatherproof type pressure switch
Range: -0.1~2.5 MPa, 0~35 MPa
Case dimension:246(W)x271(H) Working temp.: -20~65 ºC (Max.100 ºC)
Range: 0~5 kPa to 0~100 MPa Element material: 316SS
Case and cover: ALDC 12.1 Case and cover: ALDC 12.1
P945 P953 series
Weatherproof type pressure switch Explosion proof pressure switch
Range: 0.3 kPa to 15 MPa Fluid: Gas and oil
Working temp.: -20~65 ºC l Case and cover: ALDC 12.1 Working temperature: -40~65 ºC (Max. 100 ºC)
Element material: 316SS Element: 316L SS, Monel, Hastelloy-C and Viton
EN60529/IEC529/IP65 KCS Ex d IIC T6, ATEX II 2G Ex d IIC T6 Gb, IECEX Ex d IIC T6 Gb
