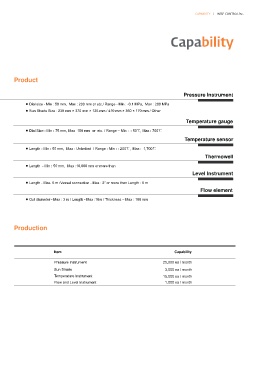

CAPABILITY l WISE CONTROL.Inc.
Capability
Product
Pressure Instrument
Dial size - Min : 50 mm, Max : 200 mm or etc./ Range - Min : -0.1 MPa, Max : 200 MPa
Sun Shade Size : 230 mm × 370 mm × 125 mm / 410 mm × 350 × 170 mm / Other
Temperature gauge
Dial Size : Min : 75 mm, Max 150 mm or etc. / Range – Min : - 50, Max : 700
Temperature sensor
Length - Min : 50 mm, Max : Unlimited / Range - Min : - 200, Max : 1,700
Thermowell
Length - Min : 50 mm, Max :10,000 mm or more than
Level Instrument
Length - Max. 5 m /Vessel connection - Max : 2” or more than Length : 5 m
Flow element
Out diameter - Max : 3 m / Length - Max :10m / Thickness – Max : 100 mm
Production
Item Capability
Pressure Instrument 25,000 ea / month
Sun Shade 3,000 ea / month
Temperature Instrument 15,000 ea / month
Flow and Level Instrument 1,000 ea / month
