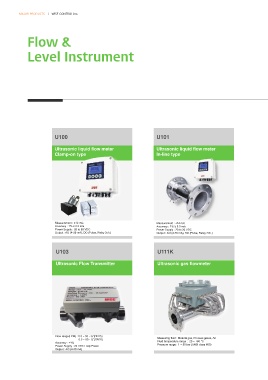

Page 40 - 2017 PQ

MAJOR PRODUCTS l WISE CONTROL.Inc.

Flow &

Level Instrument

U100 U101

Ultrasonic liquid flow meter Ultrasonic liquid flow meter
Clamp-on type In-line type

Measurement : ±12 m/s Measurement : ±24 m/s
Accuracy : 1% ≥ 0.3 m/s Accuracy : 1% ≥ 0.3 m/s
Power Supply : 20 to 30 VDC Power Supply : 20 to 30 VDC
Output : AO (4-20 mA), DO (Pulse, Relay 2ch.) Output : AO (4-20 mA), DO (Pulse, Relay 2ch.)

U103 U111K

Ultrasonic Flow Transmitter Ultrasonic gas flowmeter

Flow range(LPM) : 0.3 ~ 50 - ¾"(DN15)
0.5 ~ 80 - ½"(DN20) Measuring fluid : Matural gas, Process gases, Air
Accuracy : ±1% Fluid temperature range : -20 ~ +60 °C
Power Supply : 24 VDC Loop Power Pressure range : 1 ~ 50 bar (ANSI class 600)
Output : AO (4-20 mA)
