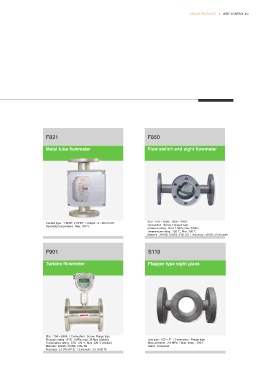

MAJOR PRODUCTS l WISE CONTROL.Inc.
F821 F850
Metal tube flowmeter Flow switch and sight flowmeter
Contact type : 1 SPDT, 2 SPDT l Output : 4 ~ 20 mA.DC Size : 10A ~ 300A, 350A ~ 500A
Operating temperature : Max. 300 ℃ Connection : Screw, Flanged type
Pressure rating : STD. 1 MPa, max. 6 MPa
Temperature rating : 120 ℃, Max. 300 ℃
Material : 304SS, 316SS, 316L SS l Accuracy : ±5.0% of full scale
F901 S110
Turbine flowmeter Flapper type sight glass
Size : 10A ~ 250A l Connection : Screw, Flange type
Pressure rating : STD. 1 MPa, max. 35 Mpa (Option) Line size : 1/2" ~ 8" l Connection : Flange type
Temperature rating : STD. 120 ℃, Max. 200 ℃ (Option) Max. pressure : 2.9 MPa l Max. temp. : 300℃
Material : 304SS, 316SS, 316L SS Glass : Tempered
Accuracy : ±1.0% of F.S. l Enclosure : Ex d IIB T6
