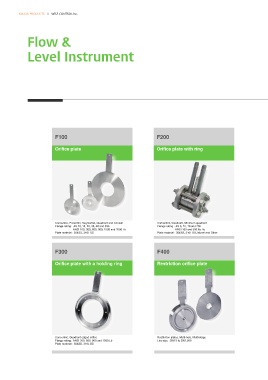

MAJOR PRODUCTS l WISE CONTROL.Inc.
Flow &
Level Instrument
F100 F200
Orifice plate Orifice plate with ring
Concentric, Eccentric, Segmental, Quadrant and Conical Concentric, Quadrant, Minimum quadrant
Flange rating : JIS 10, 16, 20, 30, 40 and 63K Flange rating : JIS 5, 10, 16 and 20K
ANSI 150, 300, 600, 900, 1500 and 2500 Lb ANSI 150 and 300 Lb Lb
Plate material : 304SS, 316L SS Plate material : 304SS, 316L SS, Monel and Other
F300 F400
Orifice plate with a holding ring Restriction orifice plate
Concentric, Quadrant edged orifice Restriction plates, Multi-hole, Multi-stage
Flange rating : ANSI 300, 600, 900 and 1500 Lb Line size : DN15 to DN1,800
Plate material : 304SS, 316L SS
