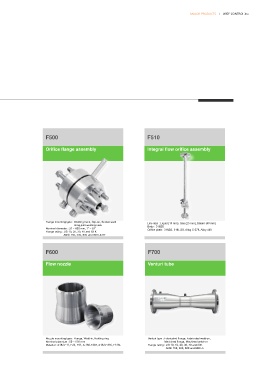

MAJOR PRODUCTS l WISE CONTROL.Inc.
F500 F510
Orifice flange assembly Integral flow orifice assembly
Flange mounting type : Welding neck, Slip-on, Socket-weld Line size : Liquid (15 mm), Gas (25 mm), Steam (40 mm)
Ring-joint welding neck Body : 316SS
Nominal diameter : 25 ~ 600 mm, 1" ~ 24" Orifice plate : 316SS, 316L SS, Alloy C-276, Alloy 400
Flange rating : JIS 10, 20, 30, 40 and 63 K
ANSI 150, 300, 600 and 900 Lb RF
F600 F700
Flow nozzle Venturi tube
Nozzle mounting type : Flange, Weld-in, Holding ring Venturi type : Fabricated flange, Fabricated weld-on,
Nominal pipe size : 50 ~ 630 mm Machined flange, Machined weld-on
Material : A182-F11, F22, F91, A-182-F304, A182-F316, F316L Flange rating : JIS 10, 16, 20, 30, 40 and 63K
ANSI 150, 300, 600 and 900 Lb
