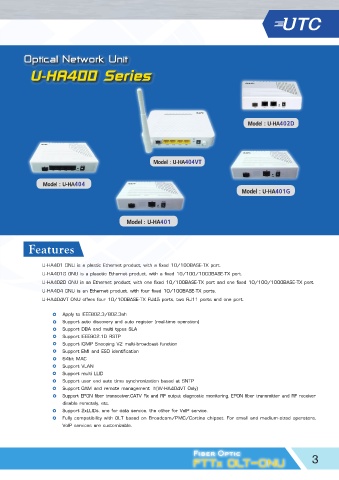

Page 3 - 050819 UTC By May

Optical Network Unit

U-HA400 Series

Model : U-HA402D

Model : U-HA404VT

Model : U-HA404
Model : U-HA401G

Model : U-HA401

Features

U-HA401 ONU is a plastic Ethernet product, with a fixed 10/100BASE-TX port.
U-HA401G ONU is a plasctic Ethernet product, with a fixed 10/100/1000BASE-TX port.
U-HA402D ONU is an Ethernet product, with one fixed 10/100BASE-TX port and one fixed 10/100/1000BASE-TX port.
U-HA404 ONU is an Ethernet product, with four fixed 10/100BASE-TX ports.
U-HA404VT ONU offers four 10/100BASE-TX RJ45 ports, two RJ11 ports and one port.

Apply to IEEE802.3/802.3ah
Support auto discovery and auto register (real-time operation)
Support DBA and multi types SLA
Support IEEE802.1D RSTP
Support IGMP Snooping V2 multi-broadcast function
Support EMI and ESD identification
64bit MAC
Support VLAN
Support multi LLID
Support user end auto time synchronization based at SNTP
Support OAM and remote management h(W-HA404VT Only)
Support EPON fiber transceiver,CATV Rx and RF output diagnostic monitoring, EPON fiber transmitter and RF receiver
disable remotely, etc.
Support 2xLLIDs, one for data service, the other for VoIP service.
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. For small and medium-sized operators,
VoIP services are customizable.

Fiber Optic
FTTx OLT-ONU 3
