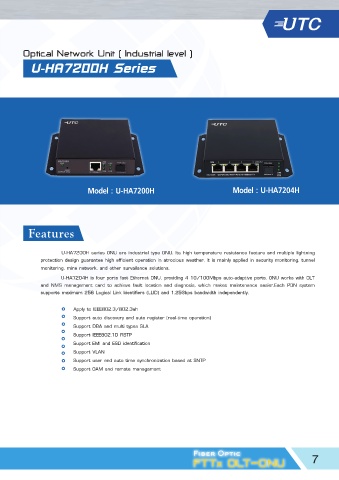

Optical Network Unit ( Industrial level )

           U-HA7200H Series

























                                Model : U-HA7200H                                  Model : U-HA7204H








           Features



                         U-HA7200H series ONU are industrial type ONU. Its high temperature resistance feature and multiple lightning
               protection design guarantee high efficient operation in atrocious weather. It is mainly applied in security monitoring, tunnel
               monitoring, mine network, and other survailance solutions.
                         U-HA7204H is four ports fast Ethernet ONU, providing 4 10/100Mbps auto-adaptive ports. ONU works with OLT
               and NMS management card to achieve fault location and diagnosis, which makes maintenance easier.Each PON system
               supports maximum 256 Logical Link Identifiers (LLID) and 1.25Gbps bandwidth independently.

                               Apply to IEEE802.3/802.3ah
                               Support auto discovery and auto register (real-time operation)
                               Support DBA and multi types SLA
                               Support IEEE802.1D RSTP
                               Support EMI and ESD identification
                               Support VLAN
                               Support user end auto time synchronization based at SNTP
                               Support OAM and remote management
