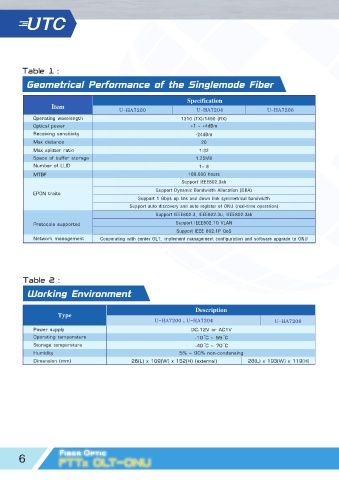

Table 1 :
Geometrical Performance of the Singlemode Fiber
Specification
Item U-HA7200 U-HA7204 U-HA7208
Operating wavelength 1310 (TX)/1490 (RX)
Optical power +1 ~ +4dBm
Receiving sensitivity -24dBm
Max distance 20
Max splitter ratio 1:32
Space of buffer storage 1.25MB
Number of LLID 1~ 8
MTBF 100,000 hours
Support IEEE802.3ah
Support Dynamic Bandwidth Allocation (DBA)
EPON traits
Support 1 Gbps up link and down link symmetrical bandwidth
Support auto discovery and auto register of ONU (real-time operation)
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Protocols supported Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Network management Cooperating with center OLT, implement management configuration and software upgrade to ONU
Table 2 :
Working Environment
Description
Type
U-HA7200 , U-HA7204 U-HA7208
Power supply DC-12V or AC1V
Operating temperature -10 ํC ~ 55 ํC
Storage temperature -40 ํC ~ 70 ํC
Humidity 5% ~ 90% non-condensing
Dimension (mm) 26(L) x 109(W) x 152(H) (external) 28(L) x 193(W) x 119(H)
