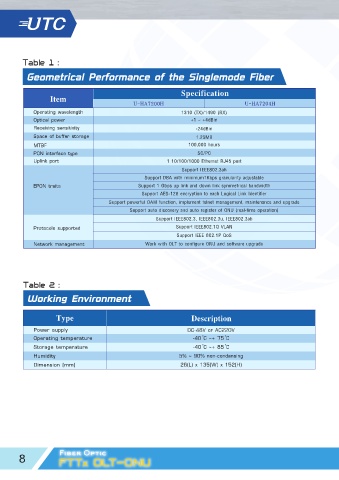

Table 1 :
Geometrical Performance of the Singlemode Fiber
Specification
Item
U-HA7200H U-HA7204H
Operating wavelength 1310 (TX)/1490 (RX)
Optical power +1 ~ +4dBm
Receiving sensitivity -24dBm
Space of buffer storage 1.25MB
MTBF 100,000 hours
PON interface type SC/PC
Uplink port 1 10/100/1000 Ethernet RJ45 port
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
EPON traits Support 1 Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Protocols supported Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Network management Work with OLT to configure ONU and software upgrade
Table 2 :
Working Environment
Type Description
Power supply DC-48V or AC220V
Operating temperature -40 ํC ~+ 75 ํC
Storage temperature -40 ํC ~+ 85 ํC
Humidity 5% ~ 90% non-condensing
Dimension (mm) 26(L) x 135(W) x 152(H)
8 Fiber Optic
FTTx OLT-ONU
