P. 61

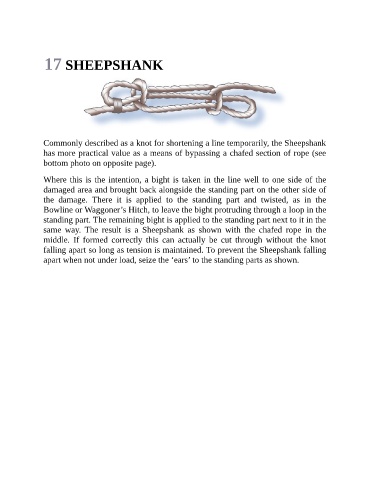

17 SHEEPSHANK















               Commonly described as a knot for shortening a line temporarily, the Sheepshank
               has more practical value as a means of bypassing a chafed section of rope (see
               bottom photo on opposite page).

               Where this is the intention, a bight is taken in the line well to one side of the
               damaged area and brought back alongside the standing part on the other side of
               the  damage.  There  it  is  applied  to  the  standing  part  and  twisted,  as  in  the

               Bowline or Waggoner’s Hitch, to leave the bight protruding through a loop in the
               standing part. The remaining bight is applied to the standing part next to it in the
               same  way.  The  result  is  a  Sheepshank  as  shown  with  the  chafed  rope  in  the
               middle.  If  formed  correctly  this  can  actually  be  cut  through  without  the  knot
               falling apart so long as tension is maintained. To prevent the Sheepshank falling
               apart when not under load, seize the ‘ears’ to the standing parts as shown.
