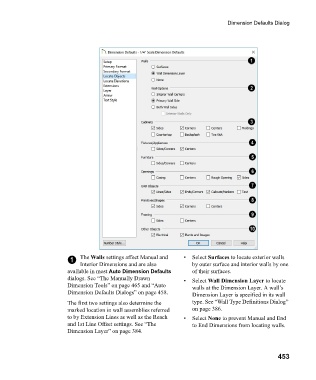

Dimension Defaults Dialog

1 The Walls settings affect Manual and • Select Surfaces to locate exterior walls
Interior Dimensions and are also by outer surface and interior walls by one
available in most Auto Dimension Defaults of their surfaces.
dialogs. See “The Manually Drawn • Select Wall Dimension Layer to locate
Dimension Tools” on page 465 and “Auto walls at the Dimension Layer. A wall’s
Dimension Defaults Dialogs” on page 458. Dimension Layer is specified in its wall
The first two settings also determine the type. See “Wall Type Definitions Dialog”
marked location in wall assemblies referred on page 386.
to by Extension Lines as well as the Reach • Select None to prevent Manual and End
and 1st Line Offset settings. See “The to End Dimensions from locating walls.
Dimension Layer” on page 384.

453
