For more information, see “Locate Objects
Panel” on page 452.

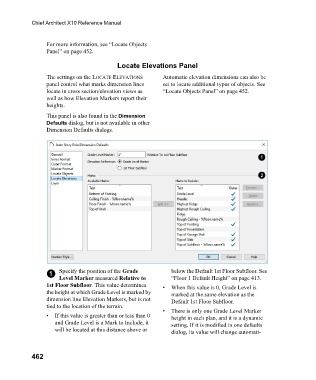

Locate Elevations Panel

The settings on the LOCATE ELEVATIONS Automatic elevation dimensions can also be
panel control what marks dimension lines set to locate additional types of objects. See
locate in cross section/elevation views as “Locate Objects Panel” on page 452.
well as how Elevation Markers report their
heights.
This panel is also found in the Dimension
Defaults dialog, but is not available in other
Dimension Defaults dialogs.

1 Specify the position of the Grade below the Default 1st Floor Subfloor. See
Level Marker measured Relative to “Floor 1 Default Height” on page 413.
1st Floor Subfloor. This value determines • When this value is 0, Grade Level is
the height at which Grade Level is marked by marked at the same elevation as the
dimension line Elevation Markers, but is not Default 1st Floor Subfloor.
tied to the location of the terrain.
• There is only one Grade Level Marker
• If this value is greater than or less than 0 height in each plan, and it is a dynamic
and Grade Level is a Mark to Include, it setting. If it is modified in one defaults
will be located at this distance above or dialog, its value will change automati-
