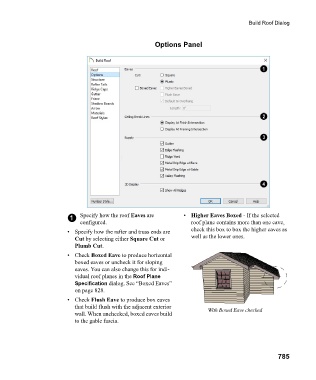

Build Roof Dialog

Options Panel

1 Specify how the roof Eaves are • Higher Eaves Boxed - If the selected
configured. roof plane contains more than one eave,
• Specify how the rafter and truss ends are check this box to box the higher eaves as
Cut by selecting either Square Cut or well as the lower ones.
Plumb Cut.
• Check Boxed Eave to produce horizontal
boxed eaves or uncheck it for sloping
eaves. You can also change this for indi-
vidual roof planes in the Roof Plane
Specification dialog. See “Boxed Eaves”
on page 828.
• Check Flush Eave to produce box eaves
that build flush with the adjacent exterior
wall. When unchecked, boxed eaves build With Boxed Eave checked
to the gable fascia.

785
