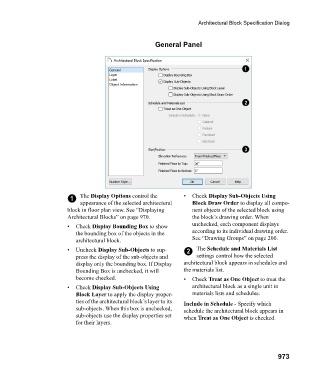

Page 973 - Chief Architect Reference Manual

Architectural Block Specification Dialog

General Panel

1 The Display Options control the • C h e c k Display Sub-Objects Using
appearance of the selected architectural Block Draw Order to display all compo-
block in floor plan view. See “Displaying nent objects of the selected block using
Architectural Blocks” on page 970. the block’s drawing order. When
• Check Display Bounding Box to show unchecked, each component displays
the bounding box of the objects in the according to its individual drawing order.
architectural block. See “Drawing Groups” on page 200.
• Uncheck Display Sub-Objects to sup- 2 The Schedule and Materials List
press the display of the sub-objects and settings control how the selected
display only the bounding box. If Display architectural block appears in schedules and
Bounding Box is unchecked, it will the materials list.
become checked. • C h e c k Treat as One Object to treat the
• Check Display Sub-Objects Using architectural block as a single unit in
Block Layer to apply the display proper- materials lists and schedules.
ties of the architectural block’s layer to its Include in Schedule - Specify which
sub-objects. When this box is unchecked, schedule the architectural block appears in
sub-objects use the display properties set when Treat as One Object is checked.
for their layers.

973
