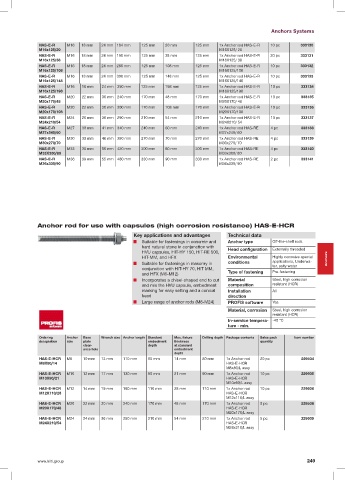

Anchors Systems

HAS-E-R M16 18 mm 24 mm 164 mm 125 mm 20 mm 125 mm 1x Anchor rod HAS-E-R 10 pc 333130
M16x125/20 M16X125/ 20
HAS-E-R M16 18 mm 24 mm 190 mm 125 mm 38 mm 125 mm 1x Anchor rod HAS-E-R 20 pc 333131
M16x125/38 M16X125/ 38
HAS-E-R M16 18 mm 24 mm 260 mm 125 mm 108 mm 125 mm 1x Anchor rod HAS-E-R 10 pc 333132
M16x125/108 M16X125/108
HAS-E-R M16 18 mm 24 mm 300 mm 125 mm 148 mm 125 mm 1x Anchor rod HAS-E-R 10 pc 333133
M16x125/148 M16X125/148
HAS-E-R M16 18 mm 24 mm 350 mm 125 mm 198 mm 125 mm 1x Anchor rod HAS-E-R 10 pc 333134
M16x125/198 M16X125/198
HAS-E-R M20 22 mm 30 mm 240 mm 170 mm 48 mm 170 mm 1x Anchor rod HAS-E-R 10 pc 333135
M20x170/48 M20X170/ 48
HAS-E-R M20 22 mm 30 mm 300 mm 170 mm 108 mm 170 mm 1x Anchor rod HAS-E-R 10 pc 333136
M20x170/108 M20X170/108
HAS-E-R M24 26 mm 36 mm 290 mm 210 mm 54 mm 210 mm 1x Anchor rod HAS-E-R 10 pc 333137
M24x210/54 M24X210/ 54
HAS-E-R M27 30 mm 41 mm 340 mm 240 mm 60 mm 240 mm 1x Anchor rod HAS-RE 4 pc 333138
M27x240/60 M27x240/ 60
HAS-E-R M30 33 mm 46 mm 380 mm 270 mm 70 mm 270 mm 1x Anchor rod HAS-RE 4 pc 333139
M30x270/70 M30x270/ 70
HAS-E-R M33 36 mm 50 mm 420 mm 300 mm 80 mm 300 mm 1x Anchor rod HAS-RE 4 pc 333140
M33X300/80 M33x300/ 80
HAS-E-R M36 39 mm 55 mm 460 mm 330 mm 90 mm 330 mm 1x Anchor rod HAS-RE 2 pc 333141
M36x330/90 M36x330/ 90

Anchor rod for use with capsules (high corrosion resistance) HAS-E-HCR
Key applications and advantages Technical data
■ Suitable for fastenings in concrete and Anchor type Off-the-shelf rods
hard natural stone in conjunction with Head configuration Externally threaded
HVU capsules, HIT-HY 150, HIT-RE 500,
HIT-MM, and HFX Environmental Highly corrosive special Anchors
■ Suitable for fastenings in masonry in conditions applications, Underwa-
ter, salty water
conjunction with HIT-HY 70, HIT MM,
and HFX (M6-M12) Type of fastening Pre-fastening
■ Incorporates a chisel-shaped end to cut Material Steel, high corrosion
and mix the HVU capsule, embedment composition resistant (HCR)
marking for easy setting and a conical Installation All
head direction
■ Large range of anchor rods (M8-M24) PROFIS software Yes
Material, corrosion Steel, high corrosion
resistant (HCR)
In-service tempera- -40 °C
ture - min.
Ordering Anchor Base Wrench size Anchor length Standard Max. fixture Drilling depth Package contents Sales pack Item number
designation size plate embedment thickness quantity
clear- depth at standard
ance hole embedment
depth
HAS-E-HCR M8 10 mm 13 mm 110 mm 80 mm 14 mm 80 mm 1x Anchor rod 20 pc 229504
M8X80/14 HAS-E-HCR
M8x80/L assy
HAS-E-HCR M10 12 mm 17 mm 130 mm 90 mm 21 mm 90 mm 1x Anchor rod 10 pc 229505
M10X90/21 HAS-E-HCR
M10x90/L assy
HAS-E-HCR M12 14 mm 19 mm 160 mm 110 mm 28 mm 110 mm 1x Anchor rod 10 pc 229506
M12X110/28 HAS-E-HCR
M12x110/L assy
HAS-E-HCR M20 22 mm 30 mm 240 mm 170 mm 48 mm 170 mm 1x Anchor rod 5 pc 229508
M20X170/48 HAS-E-HCR
M20x170/L assy
HAS-E-HCR M24 24 mm 36 mm 290 mm 210 mm 54 mm 210 mm 1x Anchor rod 5 pc 229509
M24X210/54 HAS-E-HCR
M24x210/L assy

www.hilti.group 249
