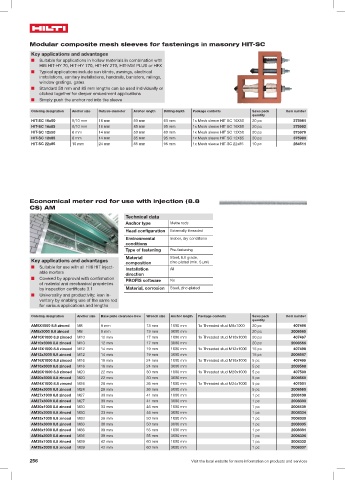

Modular composite mesh sleeves for fastenings in masonry HIT-SC
             Key applications and advantages
             ■  Suitable for applications in hollow materials in combination with
                Hilti HIT-HY 70, HIT-HY 170, HIT-HY 270, HIT-MM PLUS or HFX
             ■  Typical applications include sun blinds, awnings, electrical
                installations, sanitary installations, handrails, banisters, railings,
                window gratings, gates
             ■  Standard 50 mm and 85 mm lengths can be used individually or
                clicked together for deeper embedment applications
             ■  Simply push the anchor rod into the sleeve
             Ordering designation  Anchor size  Outside diameter  Anchor length  Drilling depth  Package contents  Sales pack   Item number
                                                                                              quantity
             HIT-SC 16x50   8/10 mm  18 mm        50 mm      60 mm      1x Mesh sleeve HIT SC 16X50  20 pc   375981
             HIT-SC 16x85   8/10 mm  18 mm        85 mm      95 mm      1x Mesh sleeve HIT SC 16X85  20 pc   375982
             HIT-SC 12x50   6 mm     14 mm        50 mm      60 mm      1x Mesh sleeve HIT SC 12X50  20 pc   375979
             HIT-SC 12x85   6 mm     14 mm        85 mm      95 mm      1x Mesh sleeve HIT SC 12X85  20 pc   375980
             HIT-SC 22x85   16 mm    24 mm        85 mm      95 mm      1x Mesh sleeve HIT-SC 22x85  10 pc   284511











            Economical meter rod for use with injection (8.8
            CS) AM

                                               Technical data
                                               Anchor type      Metre rods
                                               Head configuration  Externally threaded
                                               Environmental    Indoor, dry conditions
                                               conditions
                                               Type of fastening  Pre-fastening
                                               Material         Steel, 8.8 grade,
             Key applications and advantages                    zinc-plated (min. 5 µm)
                                               composition
             ■  Suitable for use with all Hilti HIT inject-
                                               Installation     All
                able mortars
                                               direction
             ■  Covered by approval with confirmation
                                               PROFIS software  No
                of material and mechanical proprieties
                by inspection certificate 3.1  Material, corrosion  Steel, zinc-plated
             ■  Universality and productivity: lean in-
                ventory by enabling use of the same rod
                for various applications and lengths
             Ordering designation  Anchor size  Base plate clearance hole  Wrench size  Anchor length  Package contents  Sales pack   Item number
                                                                                              quantity
             AM8X1000 8.8 zinced  M8  9 mm             13 mm    1000 mm   1x Threaded stud M8x1000  20 pc    407496
             AM8x3000 8.8 zinced  M8  9 mm             13 mm    3000 mm                       20 pc          2008565
             AM10X1000 8.8 zinced  M10  12 mm          17 mm    1000 mm   1x Threaded stud M10x1000  20 pc   407497
             AM10x3000 8.8 zinced  M10  12 mm          17 mm    3000 mm                       20 pc          2008566
             AM12X1000 8.8 zinced  M12  14 mm          19 mm    1000 mm   1x Threaded stud M12x1000  15 pc   407498
             AM12x3000 8.8 zinced  M12  14 mm          19 mm    3000 mm                       15 pc          2008567
             AM16X1000 8.8 zinced  M16  18 mm          24 mm    1000 mm   1x Threaded stud M16x1000  5 pc    407499
             AM16x3000 8.8 zinced  M16  18 mm          24 mm    3000 mm                       5 pc           2008568
             AM20X1000 8.8 zinced  M20  22 mm          30 mm    1000 mm   1x Threaded stud M20x1000  5 pc    407500
             AM20x3000 8.8 zinced  M20  22 mm          30 mm    3000 mm                       5 pc           2008569
             AM24X1000 8.8 zinced  M24  26 mm          36 mm    1000 mm   1x Threaded stud M24x1000  5 pc    407501
             AM24x3000 8.8 zinced  M24  26 mm          36 mm    3000 mm                       5 pc           2008580
             AM27x1000 8.8 zinced  M27  30 mm          41 mm    1000 mm                       1 pc           2008138
             AM27x3000 8.8 zinced  M27  30 mm          41 mm    3000 mm                       1 pc           2008333
             AM30x1000 8.8 zinced  M30  33 mm          46 mm    1000 mm                       1 pc           2008139
             AM30x3000 8.8 zinced  M30  33 mm          46 mm    3000 mm                       1 pc           2008334
             AM33x1000 8.8 zinced  M33  36 mm          50 mm    1000 mm                       1 pc           2008330
             AM33x3000 8.8 zinced  M33  36 mm          50 mm    3000 mm                       1 pc           2008335
             AM36x1000 8.8 zinced  M36  39 mm          55 mm    1000 mm                       1 pc           2008331
             AM36x3000 8.8 zinced  M36  39 mm          55 mm    3000 mm                       1 pc           2008336
             AM39x1000 8.8 zinced  M39  42 mm          60 mm    1000 mm                       1 pc           2008332
             AM39x3000 8.8 zinced  M39  42 mm          60 mm    3000 mm                       1 pc           2008337
