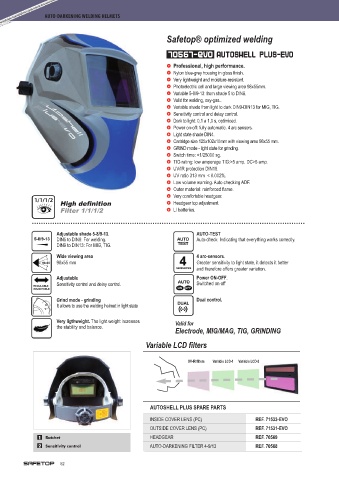

Page 54 - CAT-SAFETOP-2019-ENGLISH

AUTO DARKENING WELDING HELMETS
High definition
Filter 1/1/1/2
Adjustable shade 5-8/9-13.
DIN5 to DIN8: For welding.
DIN9 to DIN13: For MIG, TIG.
Wide viewing area
98x55 mm
Adjustable
Sensitivity control and delay control.
Grind mode - grinding
It allows to use the welding helmet in light state
Very ligthweight. The light weight increases Valid for
the stability and balance.
Variable LCD filters
1 Ratchet
2 Sensitivity control
52
Safetop® optimized welding
70567-evo AUTOSHELL PLUS-EVO
+ Professional, high performance.
+ Nylon blue-grey housing in gloss finish.
+ Very lightweight and moisture-resistant.
+ Photoelectric cell and large viewing area 98x55mm.
+ Variable 5-8/9-13: from shade 5 to DIN8.
+ Valid for welding, oxy-gas..
+ Variable shade from light to dark DIN9-DIN13 for MIG, TIG.
+ Sensitivity control and delay control.
+ Dark to light: 0,1 a 1,0 s, optimiced.
+ Power on-off: fully automatic. 4 arc sensors.
+ Light state shade DIN4.
+ Cartridge size 125x102x10mm with viewing area 98x55 mm.
+ GRIND mode - light state for grinding.
+ Switch time: <1/25000 sg.
+ TIG rating: low amperage TIG:>5 amp. DC>5 amp.
+ UV/IR protection DIN16.
+ UV ratio 313 mm < 0.002%.
+ Low volume warning. Auto checking ADF.
+ Outer material: reinforced flame.
+ Very comfortable headgear.
+ Headgear top adjustment.
+ LI batteries.
AUTO-TEST
Auto-check: Indicating that everything works correctly.
4 arc-sensors.
Greater sensitivity to light state, it detects it better
and therefore offers greater variation.
Power ON-OFF.
Switched on-off
Dual control.
Electrode, MIG/MAG, TIG, GRINDING
UV-IR filters Variable LCD-1 Variable LCD-2
AUTOSHELL PLUS SPARE PARTS
INSIDE COVER LENS (PC) REF. 71533-EVO
OUTSIDE COVER LENS (PC) REF. 71531-EVO
HEADGEAR REF. 70569
AUTO-DARKENING FILTER 4-9/13 REF. 70568
