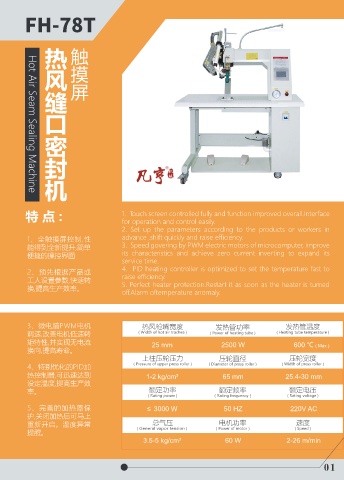

FH-78T

Hot Air Seam Sealing Machine

特 点 : 1. Touch screen controlled fully and function improved overall.Interface
for operation and control easily.
2. Set up the parameters according to the products or workers in
1、全触摸屏控制,性 advance ,shift quickly and raise efficiency.
能得到全新提升,简单 3. Speed govering by PWM electric motors of microcomputer, improve
便捷的操控界面 its characteristics and achieve zero current inverting to expand its
service time.

2、预先根据产品或 4. PID heating controller is optimized to set the temperature fast to
工人设置参数,快速转 raise efficiency.
换,提高生产效率。 5. Perfect heater protection.Restart it as soon as the heater is turned
off.Alarm oftemperature anomaly.

3、微电脑PWM电机 热风枪嘴宽度 发热管功率 发热管温度
调速,改善电机低速转 ( Width of hot air trachea ) ( Power of heating tube ) ( Heating tube temperature )
矩特性,并实现无电流 25 mm 2500 W 600 ℃ ( Max )
换向,提高寿命。
上柱压轮压力 压轮直径 压轮宽度
4、特别优化的PID加 ( Pressure of upper press roller ) ( Diameter of press roller ) ( Width of press roller )
热控制器,可迅速达到 1-2 kg/cm³ 65 mm 25.4-30 mm
设定温度,提高生产效
率。 额定功率 额定频率 额定电压
( Rating power ) （ Rating frequency ） ( Rating voltage )
5、完善的加热器保 ≤ 3000 W 50 HZ 220V AC
护,关闭加热后可马上
重新开启。温度异常 总气压 电机功率 速度
提醒。 ( General vapor tension ) （ Power of motor ） ( Speed )
3.5-5 kg/cm³ 60 W 2-26 m/min

01
