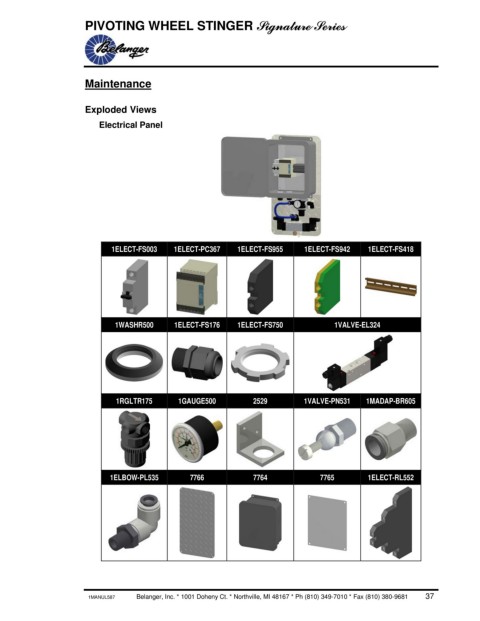

PIVOTING WHEEL STINGER Signature Series





                       Maintenance



                       Exploded Views
                          Electrical Panel

















                             1ELECT-FS003    1ELECT-PC367     1ELECT-FS955     1ELECT-FS942    1ELECT-FS418








                              1WASHR500      1ELECT-FS176     1ELECT-FS750            1VALVE-EL324









                               1RGLTR175      1GAUGE500           2529        1VALVE-PN531    1MADAP-BR605










                             1ELBOW-PL535        7766             7764             7765        1ELECT-RL552
