PIVOTING WHEEL STINGER Signature Series





            Maintenance

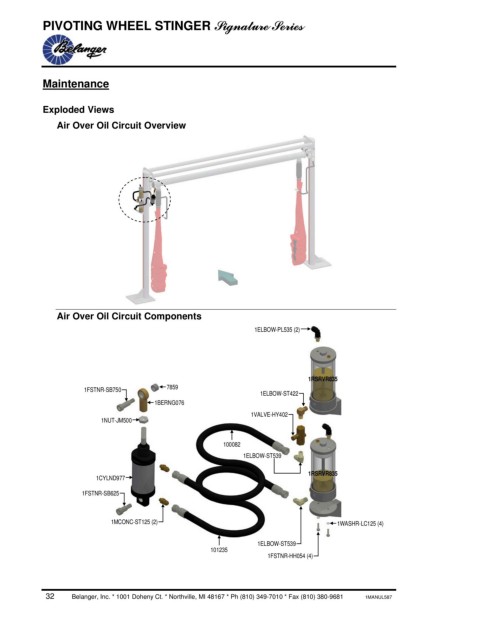

            Exploded Views
               Air Over Oil Circuit Overview




























               Air Over Oil Circuit Components
                                                                  1ELBOW-PL535 (2)






                                                                                1RSRVR835
                      1FSTNR-SB750         7859
                                                                   1ELBOW-ST422
                                        1BERNG076
                                                                 1VALVE-HY402
                           1NUT-JM500

                                                          100082
                                                               1ELBOW-ST539

                                                                                1RSRVR835
                         1CYLND977
                      1FSTNR-SB625



                             1MCONC-ST125 (2)                                          1WASHR-LC125 (4)

                                                                   1ELBOW-ST539
                                                       101235
                                                                     1FSTNR-HH054 (4)



             32        Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681          1MANUL587
