Page 31 - Pivoting Wheel Stinger™ Signature® Series

PIVOTING WHEEL STINGER Signature Series

Maintenance

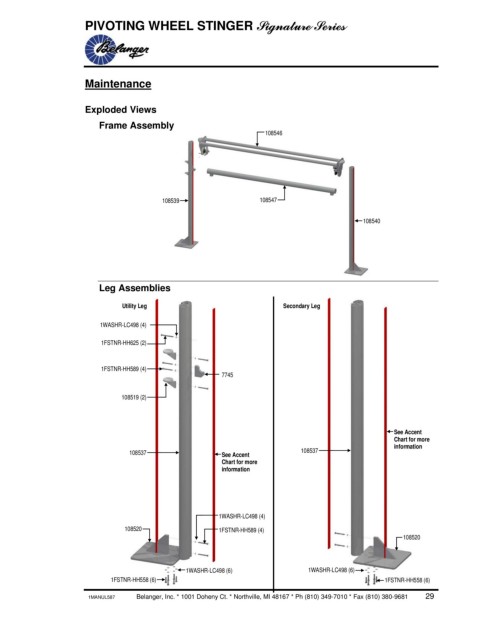

Exploded Views
Frame Assembly
108546

108539 108547

108540

Leg Assemblies

Utility Leg Secondary Leg

1WASHR-LC498 (4)

1FSTNR-HH625 (2)

1FSTNR-HH589 (4)
7745

108519 (2)

See Accent
Chart for more
information
108537 See Accent 108537
Chart for more
information

1WASHR-LC498 (4)
108520 1FSTNR-HH589 (4)
108520

1WASHR-LC498 (6) 1WASHR-LC498 (6)
1FSTNR-HH558 (6) 1FSTNR-HH558 (6)
