P. 47

®
                    SideWinder

                    Maintenance

                    Parts Identification

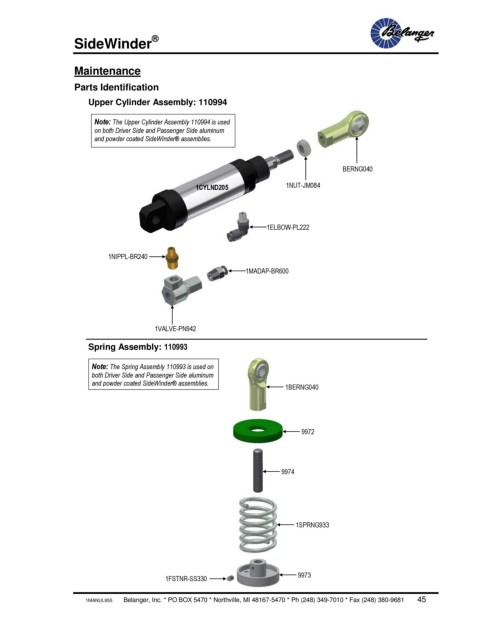

                       Upper Cylinder Assembly: 110994

                         Note: The Upper Cylinder Assembly 110994 is used
                         on both Driver Side and Passenger Side aluminum
                         and powder coated SideWinder® assemblies.



                                                                                        BERNG040

                                                   1CYLND205              1NUT-JM084





                                                                     1ELBOW-PL222


                              1NIPPL-BR240
                                                                1MADAP-BR600







                                        1VALVE-PN942

                       Spring Assembly: 110993


                        Note: The Spring Assembly 110993 is used on
                        both Driver Side and Passenger Side aluminum
                        and powder coated SideWinder® assemblies.
                                                                          1BERNG040





                                                                               9972





                                                                         9974






                                                                             1SPRNG933







                                               1FSTNR-SS330                   9973

                       1MANUL955       Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681      45
