Page 48 - SideWinder®
P. 48

®
            SideWinder


            Maintenance

            Parts Identification

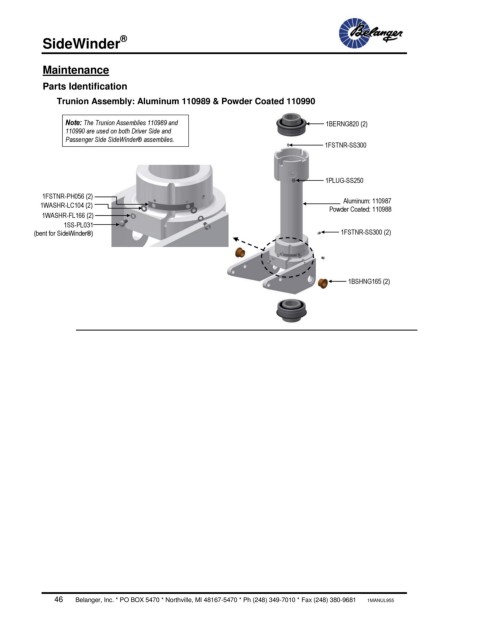

               Trunion Assembly: Aluminum 110989 & Powder Coated 110990


                  Note: The Trunion Assemblies 110989 and                            1BERNG820 (2)
                  110990 are used on both Driver Side and
                  Passenger Side SideWinder® assemblies.
                                                                                    1FSTNR-SS300



                                                                                     1PLUG-SS250

                1FSTNR-PH056 (2)
                                                                                         Aluminum: 110987
               1WASHR-LC104 (2)                                                      Powder Coated: 110988
                1WASHR-FL166 (2)
                          1SS-PL031
          (bent for SideWinder®)                                                         1FSTNR-SS300 (2)





                                                                                          1BSHNG165 (2)















































               46       Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681       1MANUL955
