SideWinder

Maintenance

Parts Identification

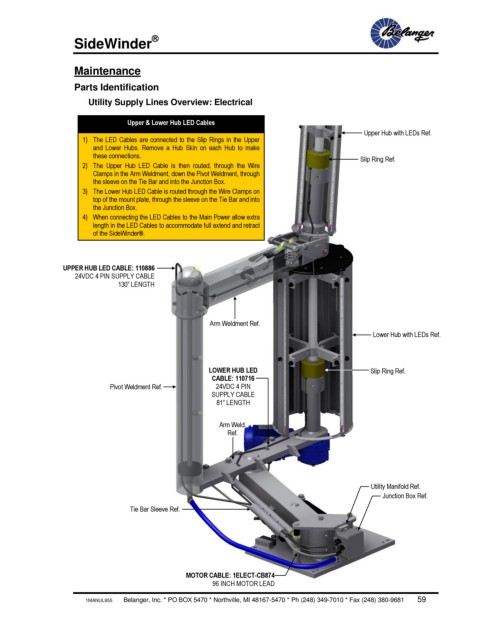

Utility Supply Lines Overview: Electrical

Upper & Lower Hub LED Cables
Upper Hub with LEDs Ref.
1) The LED Cables are connected to the Slip Rings in the Upper
and Lower Hubs. Remove a Hub Skin on each Hub to make
these connections. Slip Ring Ref.
2) The Upper Hub LED Cable is then routed, through the Wire
Clamps in the Arm Weldment, down the Pivot Weldment, through
the sleeve on the Tie Bar and into the Junction Box.
3) The Lower Hub LED Cable is routed through the Wire Clamps on
top of the mount plate, through the sleeve on the Tie Bar and into
the Junction Box.
4) When connecting the LED Cables to the Main Power allow extra
length in the LED Cables to accommodate full extend and retract
of the SideWinder®.

UPPER HUB LED CABLE: 110886
24VDC 4 PIN SUPPLY CABLE
130” LENGTH

Arm Weldment Ref.
Lower Hub with LEDs Ref.

LOWER HUB LED Slip Ring Ref.
CABLE: 110716
Pivot Weldment Ref. 24VDC 4 PIN
SUPPLY CABLE
81” LENGTH

Arm Weld.
Ref.

Utility Manifold Ref.
Junction Box Ref.
Tie Bar Sleeve Ref.

MOTOR CABLE: 1ELECT-CB874
96 INCH MOTOR LEAD
