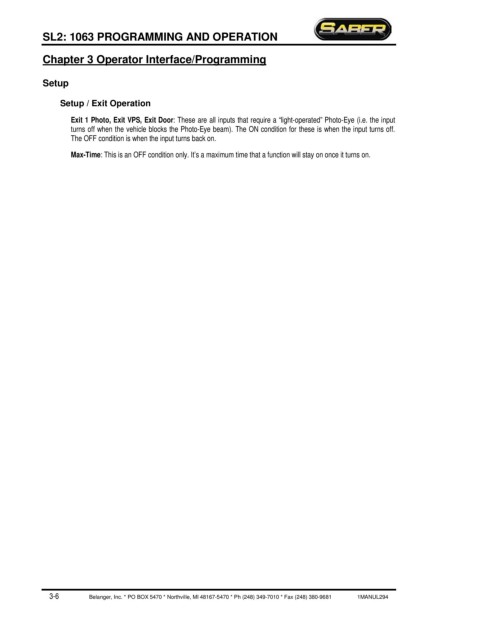

SL2: 1063 PROGRAMMING AND OPERATION
Chapter 3 Operator Interface/Programming
Setup
Setup / Exit Operation
Exit 1 Photo, Exit VPS, Exit Door: These are all inputs that require a “light-operated” Photo-Eye (i.e. the input
turns off when the vehicle blocks the Photo-Eye beam). The ON condition for these is when the input turns off.
The OFF condition is when the input turns back on.
Max-Time: This is an OFF condition only. It’s a maximum time that a function will stay on once it turns on.
