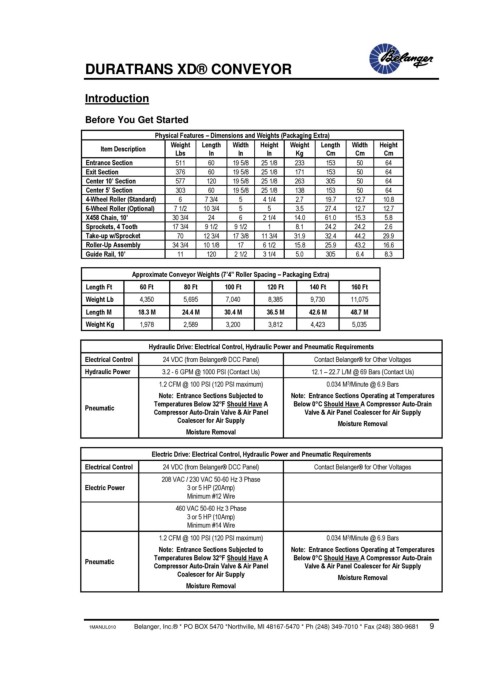

DURATRANS XD® CONVEYOR

Introduction

Before You Get Started
Physical Features – Dimensions and Weights (Packaging Extra)
Weight Length Width Height Weight Length Width Height
Item Description
Lbs In In In Kg Cm Cm Cm
Entrance Section 511 60 19 5/8 25 1/8 233 153 50 64
Exit Section 376 60 19 5/8 25 1/8 171 153 50 64
Center 10’ Section 577 120 19 5/8 25 1/8 263 305 50 64
Center 5’ Section 303 60 19 5/8 25 1/8 138 153 50 64
4-Wheel Roller (Standard) 6 7 3/4 5 4 1/4 2.7 19.7 12.7 10.8
6-Wheel Roller (Optional) 7 1/2 10 3/4 5 5 3.5 27.4 12.7 12.7
X458 Chain, 10’ 30 3/4 24 6 2 1/4 14.0 61.0 15.3 5.8
Sprockets, 4 Tooth 17 3/4 9 1/2 9 1/2 1 8.1 24.2 24.2 2.6
Take-up w/Sprocket 70 12 3/4 17 3/8 11 3/4 31.9 32.4 44.2 29.9
Roller-Up Assembly 34 3/4 10 1/8 17 6 1/2 15.8 25.9 43.2 16.6
Guide Rail, 10’ 11 120 2 1/2 3 1/4 5.0 305 6.4 8.3

Approximate Conveyor Weights (7’4” Roller Spacing – Packaging Extra)
Length Ft 60 Ft 80 Ft 100 Ft 120 Ft 140 Ft 160 Ft
Weight Lb 4,350 5,695 7,040 8,385 9,730 11,075
Length M 18.3 M 24.4 M 30.4 M 36.5 M 42.6 M 48.7 M
Weight Kg 1,978 2,589 3,200 3,812 4,423 5,035

Hydraulic Drive: Electrical Control, Hydraulic Power and Pneumatic Requirements
Electrical Control 24 VDC (from Belanger® DCC Panel) Contact Belanger® for Other Voltages
Hydraulic Power 3.2 - 6 GPM @ 1000 PSI (Contact Us) 12.1 – 22.7 L/M @ 69 Bars (Contact Us)
1.2 CFM @ 100 PSI (120 PSI maximum) 0.034 M /Minute @ 6.9 Bars
3
Note: Entrance Sections Subjected to Note: Entrance Sections Operating at Temperatures
Temperatures Below 32°F Should Have A Below 0°C Should Have A Compressor Auto-Drain
Pneumatic
Compressor Auto-Drain Valve & Air Panel Valve & Air Panel Coalescer for Air Supply
Coalescer for Air Supply
Moisture Removal
Moisture Removal

Electric Drive: Electrical Control, Hydraulic Power and Pneumatic Requirements
Electrical Control 24 VDC (from Belanger® DCC Panel) Contact Belanger® for Other Voltages
208 VAC / 230 VAC 50-60 Hz 3 Phase
Electric Power 3 or 5 HP (20Amp)
Minimum #12 Wire
460 VAC 50-60 Hz 3 Phase
3 or 5 HP (10Amp)
Minimum #14 Wire
3
1.2 CFM @ 100 PSI (120 PSI maximum) 0.034 M /Minute @ 6.9 Bars
Note: Entrance Sections Subjected to Note: Entrance Sections Operating at Temperatures
Temperatures Below 32°F Should Have A Below 0°C Should Have A Compressor Auto-Drain
Pneumatic
Compressor Auto-Drain Valve & Air Panel Valve & Air Panel Coalescer for Air Supply
Coalescer for Air Supply
Moisture Removal
Moisture Removal

1MANUL010 Belanger, Inc.® * PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 9
