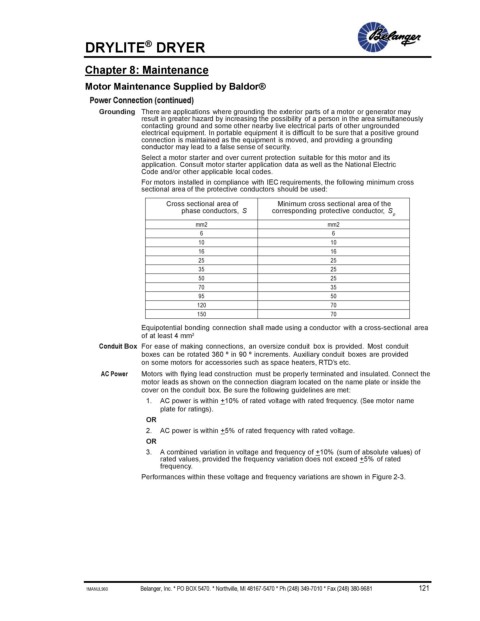

DRYLITE DRYER

Chapter 8: Maintenance

Motor Maintenance Supplied by Baldor®
Power Connection (continued)
Grounding There are applications where grounding the exterior parts of a motor or generator may
result in greater hazard by increasing the possibility of a person in the area simultaneously
contacting ground and some other nearby live electrical parts of other ungrounded
electrical equipment. In portable equipment it is difficult to be sure that a positive ground
connection is maintained as the equipment is moved, and providing a grounding
conductor may lead to a false sense of security.
Select a motor starter and over current protection suitable for this motor and its
application. Consult motor starter application data as well as the National Electric
Code and/or other applicable local codes.
For motors installed in compliance with IEC requirements, the following minimum cross
sectional area of the protective conductors should be used:

Cross sectional area of Minimum cross sectional area of the
phase conductors, S corresponding protective conductor, S
p
mm2 mm2
6 6
10 10
16 16
25 25
35 25
50 25
70 35
95 50
120 70
150 70
Equipotential bonding connection shall made using a conductor with a cross-sectional area
of at least 4 mm 2
Conduit Box For ease of making connections, an oversize conduit box is provided. Most conduit
boxes can be rotated 360 º in 90 º increments. Auxiliary conduit boxes are provided
on some motors for accessories such as space heaters, RTD’s etc.
AC Power Motors with flying lead construction must be properly terminated and insulated. Connect the
motor leads as shown on the connection diagram located on the name plate or inside the
cover on the conduit box. Be sure the following guidelines are met:
1. AC power is within +10% of rated voltage with rated frequency. (See motor name
plate for ratings).
OR
2. AC power is within +5% of rated frequency with rated voltage.
OR
3. A combined variation in voltage and frequency of +10% (sum of absolute values) of
rated values, provided the frequency variation does not exceed +5% of rated
frequency.
Performances within these voltage and frequency variations are shown in Figure 2-3.
