FULL SIDE WASHER Signature ® Series
Maintenance

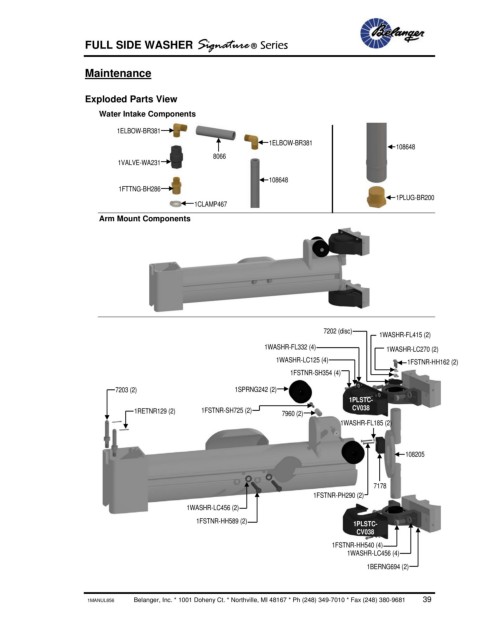

Exploded Parts View
Water Intake Components
1ELBOW-BR381
1ELBOW-BR381
108648
8066
1VALVE-WA231
108648
1FTTNG-BH286
1PLUG-BR200
1CLAMP467
Arm Mount Components
7202 (disc)
1WASHR-FL415 (2)
1WASHR-FL332 (4) 1WASHR-LC270 (2)
1WASHR-LC125 (4) 1FSTNR-HH162 (2)
1FSTNR-SH354 (4)
7203 (2) 1SPRNG242 (2)
1PLSTC-
1RETNR129 (2) 1FSTNR-SH725 (2) 7960 (2) CV038
1WASHR-FL185 (2)
108205
7178
1FSTNR-PH290 (2)
1WASHR-LC456 (2)
1FSTNR-HH589 (2) 1PLSTC-
CV038
1FSTNR-HH540 (4)
1WASHR-LC456 (4)
1BERNG694 (2)
1MANUL856 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 39
