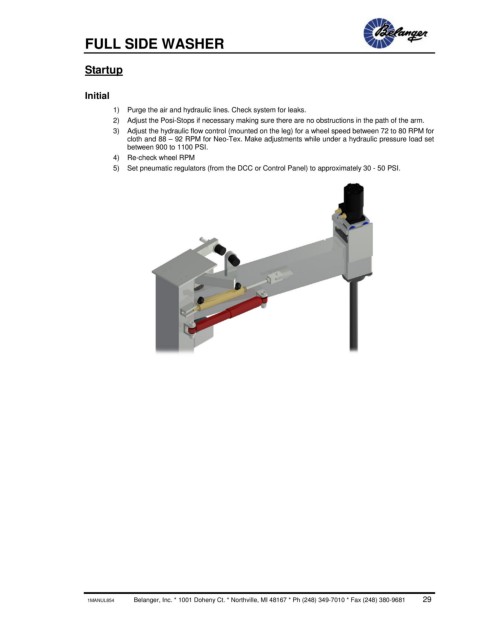

FULL SIDE WASHER


                       Startup


                       Initial

                              1)  Purge the air and hydraulic lines. Check system for leaks.
                              2)  Adjust the Posi-Stops if necessary making sure there are no obstructions in the path of the arm.
                              3)  Adjust the hydraulic flow control (mounted on the leg) for a wheel speed between 72 to 80 RPM for
                                 cloth and 88 – 92 RPM for Neo-Tex. Make adjustments while under a hydraulic pressure load set
                                 between 900 to 1100 PSI.
                              4)  Re-check wheel RPM
                              5)  Set pneumatic regulators (from the DCC or Control Panel) to approximately 30 - 50 PSI.
