Page 40 - Full Side Washer
P. 40

FULL SIDE WASHER


             Maintenance

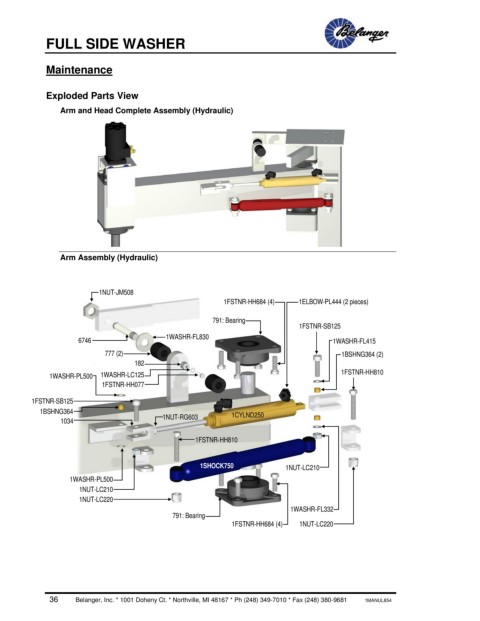

             Exploded Parts View

                Arm and Head Complete Assembly (Hydraulic)




















                Arm Assembly (Hydraulic)



                          1NUT-JM508
                                                          1FSTNR-HH684 (4)   1ELBOW-PL444 (2 pieces)

                                                       791: Bearing
                                                                             1FSTNR-SB125
                                           1WASHR-FL830
                     6746                                                             1WASHR-FL415
                            777 (2)                                                     1BSHNG364 (2)
                                   182
              1WASHR-PL500   1WASHR-LC125                                               1FSTNR-HH810
                           1FSTNR-HH077
         1FSTNR-SB125
           1BSHNG364                                        1CYLND250
                1034                      1NUT-RG603


                                                   1FSTNR-HH810


                                                    1SHOCK750             1NUT-LC210
                   1WASHR-PL500
                     1NUT-LC210
                     1NUT-LC220
                                                                           1WASHR-FL332
                                             791: Bearing

                                                            1FSTNR-HH684 (4)   1NUT-LC220
