Page 43 - Full Side Washer
P. 43

FULL SIDE WASHER


                       Maintenance

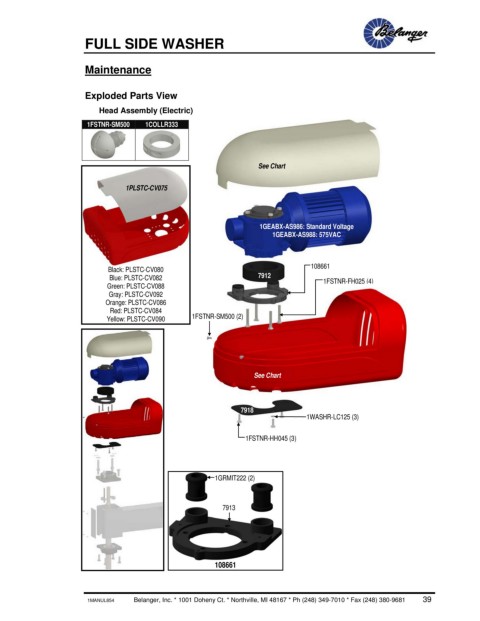

                       Exploded Parts View

                          Head Assembly (Electric)
                       1FSTNR-SM500   1COLLR333




                                                                   See Chart

                                 1PLSTC-CV075



                                                                   1GEABX-AS986: Standard Voltage
                                                                      1GEABX-AS988: 575VAC



                             Black: PLSTC-CV080                                 108661
                             Blue: PLSTC-CV082                     7912            1FSTNR-FH025 (4)
                            Green: PLSTC-CV088
                             Gray: PLSTC-CV092
                            Orange: PLSTC-CV086
                             Red: PLSTC-CV084
                            Yellow: PLSTC-CV090   1FSTNR-SM500 (2)







                                                                  See Chart




                                                              7918
                                                                               1WASHR-LC125 (3)


                                                                1FSTNR-HH045 (3)



                                                        1GRMIT222 (2)

                                                          7913





                                                        108661
