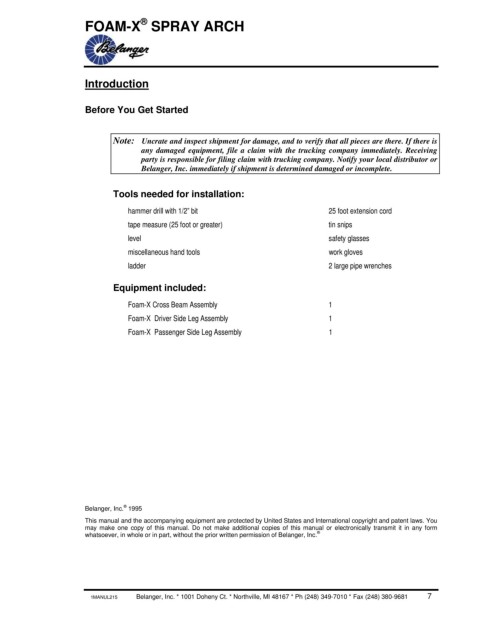

Page 9 - Foam-X® Spray Arch

®
FOAM-X SPRAY ARCH

Introduction

Before You Get Started

Note: Uncrate and inspect shipment for damage, and to verify that all pieces are there. If there is
any damaged equipment, file a claim with the trucking company immediately. Receiving
party is responsible for filing claim with trucking company. Notify your local distributor or
Belanger, Inc. immediately if shipment is determined damaged or incomplete.

Tools needed for installation:

hammer drill with 1/2” bit 25 foot extension cord
tape measure (25 foot or greater) tin snips
level safety glasses
miscellaneous hand tools work gloves

ladder 2 large pipe wrenches

Equipment included:

Foam-X Cross Beam Assembly 1
Foam-X Driver Side Leg Assembly 1
Foam-X Passenger Side Leg Assembly 1

®
Belanger, Inc. 1995
This manual and the accompanying equipment are protected by United States and International copyright and patent laws. You
may make one copy of this manual. Do not make additional copies of this manual or electronically transmit it in any form
whatsoever, in whole or in part, without the prior written permission of Belanger, Inc.
®

1MANUL215 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 7
