TopWinder
Maintenance

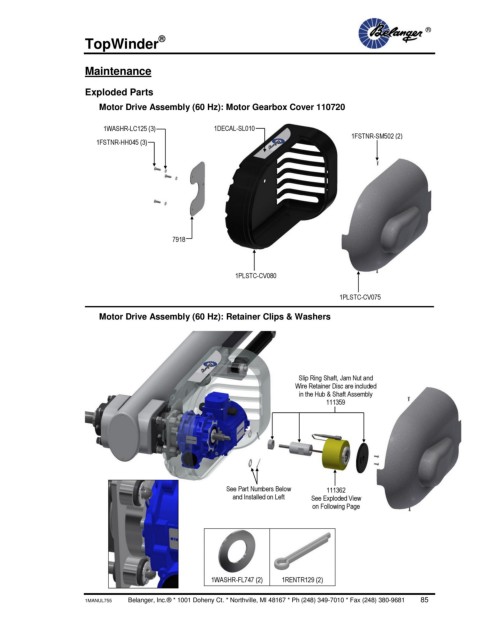

Exploded Parts
Motor Drive Assembly (60 Hz): Motor Gearbox Cover 110720
1WASHR-LC125 (3) 1DECAL-SL010
1FSTNR-SM502 (2)
1FSTNR-HH045 (3)
7918
1PLSTC-CV080
1PLSTC-CV075
Motor Drive Assembly (60 Hz): Retainer Clips & Washers
Slip Ring Shaft, Jam Nut and
Wire Retainer Disc are included
in the Hub & Shaft Assembly
111359
See Part Numbers Below 111362
and Installed on Left See Exploded View
on Following Page
1WASHR-FL747 (2) 1RENTR129 (2)
1MANUL755 Belanger, Inc.® * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 85
