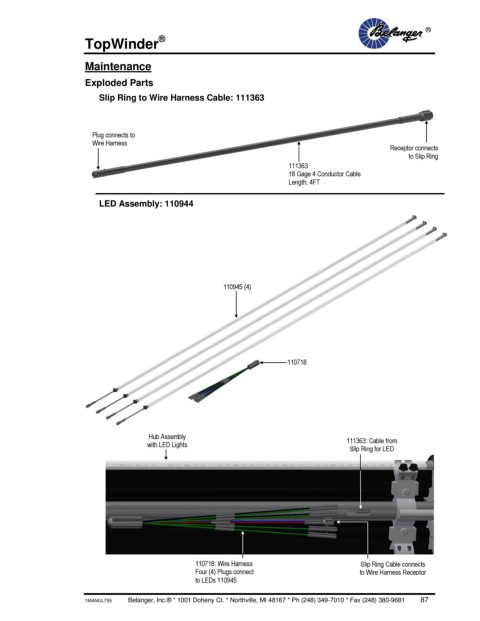

Page 91 - TopWinder®
P. 91
®
®
TopWinder
Maintenance
Exploded Parts
Slip Ring to Wire Harness Cable: 111363
Plug connects to
Wire Harness
Receptor connects
to Slip Ring
111363
18 Gage 4 Conductor Cable
Length: 4FT
LED Assembly: 110944
110945 (4)
110718
Hub Assembly 111363: Cable from
with LED Lights Slip Ring for LED
Lights
110718: Wire Harness Slip Ring Cable connects
Four (4) Plugs connect to Wire Harness Receptor
to LEDs 110945
1MANUL755 Belanger, Inc.® * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 87
