1063 PROGRAMMING AND OPERATION
Chapter 4 Operator Interface/Advanced Configuration
Setup / Advanced Configuration
Advanced Configuration / Application Configuration

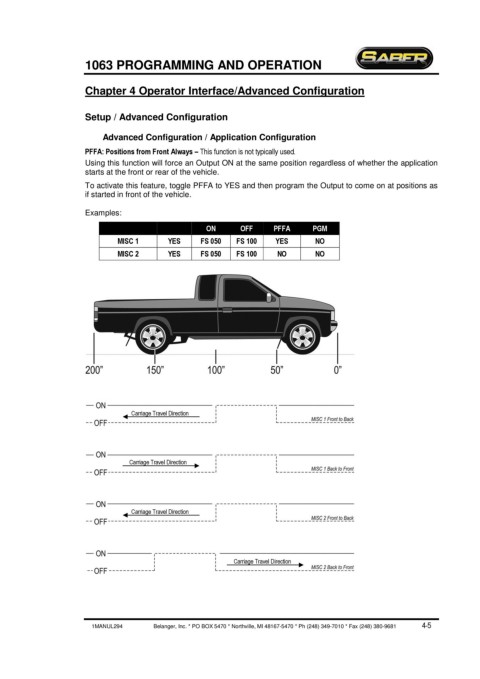

PFFA: Positions from Front Always – This function is not typically used.
Using this function will force an Output ON at the same position regardless of whether the application
starts at the front or rear of the vehicle.
To activate this feature, toggle PFFA to YES and then program the Output to come on at positions as
if started in front of the vehicle.
Examples:
ON OFF PFFA PGM
MISC 1 YES FS 050 FS 100 YES NO
MISC 2 YES FS 050 FS 100 NO NO
Carriage Travel Direction
Carriage Travel Direction
Carriage Travel Direction
Carriage Travel Direction
