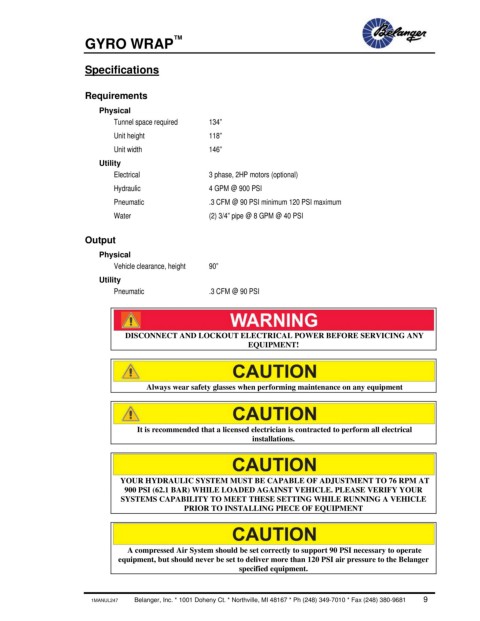

GYRO WRAP

Specifications

Requirements

Physical
Tunnel space required 134”
Unit height 118”
Unit width 146”
Utility
Electrical 3 phase, 2HP motors (optional)
Hydraulic 4 GPM @ 900 PSI
Pneumatic .3 CFM @ 90 PSI minimum 120 PSI maximum

Water (2) 3/4” pipe @ 8 GPM @ 40 PSI

Output

Physical
Vehicle clearance, height 90”
Utility
Pneumatic .3 CFM @ 90 PSI

DISCONNECT AND LOCKOUT ELECTRICAL POWER BEFORE SERVICING ANY
EQUIPMENT!

Always wear safety glasses when performing maintenance on any equipment

It is recommended that a licensed electrician is contracted to perform all electrical
installations.

YOUR HYDRAULIC SYSTEM MUST BE CAPABLE OF ADJUSTMENT TO 76 RPM AT
900 PSI (62.1 BAR) WHILE LOADED AGAINST VEHICLE. PLEASE VERIFY YOUR
SYSTEMS CAPABILITY TO MEET THESE SETTING WHILE RUNNING A VEHICLE
PRIOR TO INSTALLING PIECE OF EQUIPMENT

A compressed Air System should be set correctly to support 90 PSI necessary to operate
equipment, but should never be set to deliver more than 120 PSI air pressure to the Belanger
specified equipment.

1MANUL247 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 9
