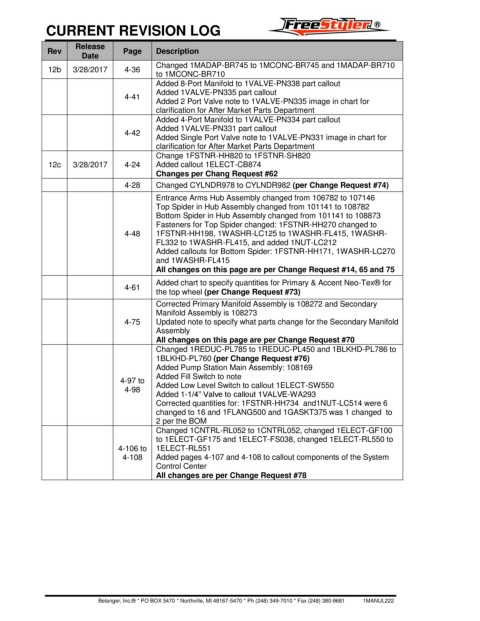

CURRENT REVISION LOG

Release
Rev Page Description
Date
Changed 1MADAP-BR745 to 1MCONC-BR745 and 1MADAP-BR710
12b 3/28/2017 4-36
to 1MCONC-BR710
Added 8-Port Manifold to 1VALVE-PN338 part callout
Added 1VALVE-PN335 part callout
4-41
Added 2 Port Valve note to 1VALVE-PN335 image in chart for
clarification for After Market Parts Department
Added 4-Port Manifold to 1VALVE-PN334 part callout
Added 1VALVE-PN331 part callout
4-42
Added Single Port Valve note to 1VALVE-PN331 image in chart for
clarification for After Market Parts Department
Change 1FSTNR-HH820 to 1FSTNR-SH820
12c 3/28/2017 4-24 Added callout 1ELECT-CB874
Changes per Chang Request #62
4-28 Changed CYLNDR978 to CYLNDR982 (per Change Request #74)
Entrance Arms Hub Assembly changed from 106782 to 107146
Top Spider in Hub Assembly changed from 101141 to 108782
Bottom Spider in Hub Assembly changed from 101141 to 108873
Fasteners for Top Spider changed: 1FSTNR-HH270 changed to
4-48 1FSTNR-HH198, 1WASHR-LC125 to 1WASHR-FL415, 1WASHR-
FL332 to 1WASHR-FL415, and added 1NUT-LC212
Added callouts for Bottom Spider: 1FSTNR-HH171, 1WASHR-LC270
and 1WASHR-FL415
All changes on this page are per Change Request #14, 65 and 75
Added chart to specify quantities for Primary & Accent Neo-Tex® for
4-61
the top wheel (per Change Request #73)
Corrected Primary Manifold Assembly is 108272 and Secondary
Manifold Assembly is 108273
4-75 Updated note to specify what parts change for the Secondary Manifold
Assembly
All changes on this page are per Change Request #70
Changed 1REDUC-PL785 to 1REDUC-PL450 and 1BLKHD-PL786 to
1BLKHD-PL760 (per Change Request #76)
Added Pump Station Main Assembly: 108169
Added Fill Switch to note
4-97 to
Added Low Level Switch to callout 1ELECT-SW550
4-98
Added 1-1/4” Valve to callout 1VALVE-WA293
Corrected quantities for: 1FSTNR-HH734 and1NUT-LC514 were 6
changed to 16 and 1FLANG500 and 1GASKT375 was 1 changed to
2 per the BOM
Changed 1CNTRL-RL052 to 1CNTRL052, changed 1ELECT-GF100
to 1ELECT-GF175 and 1ELECT-FS038, changed 1ELECT-RL550 to
4-106 to 1ELECT-RL551

4-108 Added pages 4-107 and 4-108 to callout components of the System
Control Center
All changes are per Change Request #78
