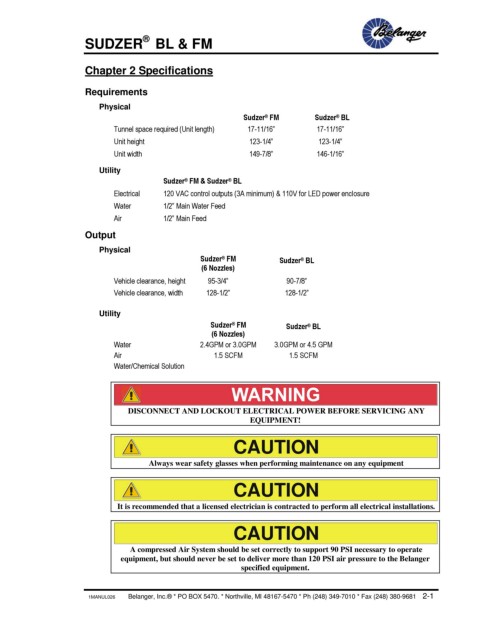

Page 21 - Sudzer® BL & FM

®
SUDZER BL & FM

Chapter 2 Specifications

Requirements
Physical
®
Sudzer FM Sudzer BL
®
Tunnel space required (Unit length) 17-11/16” 17-11/16”
Unit height 123-1/4” 123-1/4”
Unit width 149-7/8” 146-1/16”
Utility
Sudzer FM & Sudzer BL
®
®
Electrical 120 VAC control outputs (3A minimum) & 110V for LED power enclosure
Water 1/2” Main Water Feed
Air 1/2” Main Feed

Output
Physical
®
Sudzer FM Sudzer BL
®
(6 Nozzles)
Vehicle clearance, height 95-3/4” 90-7/8”
Vehicle clearance, width 128-1/2” 128-1/2”

Utility
®
®
Sudzer FM Sudzer BL
(6 Nozzles)
Water 2.4GPM or 3.0GPM 3.0GPM or 4.5 GPM
Air 1.5 SCFM 1.5 SCFM
Water/Chemical Solution

DISCONNECT AND LOCKOUT ELECTRICAL POWER BEFORE SERVICING ANY
EQUIPMENT!

CAUTION

Always wear safety glasses when performing maintenance on any equipment

CAUTION

It is recommended that a licensed electrician is contracted to perform all electrical installations.

CAUTION

A compressed Air System should be set correctly to support 90 PSI necessary to operate
equipment, but should never be set to deliver more than 120 PSI air pressure to the Belanger
specified equipment.

1MANUL026 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 2-1
