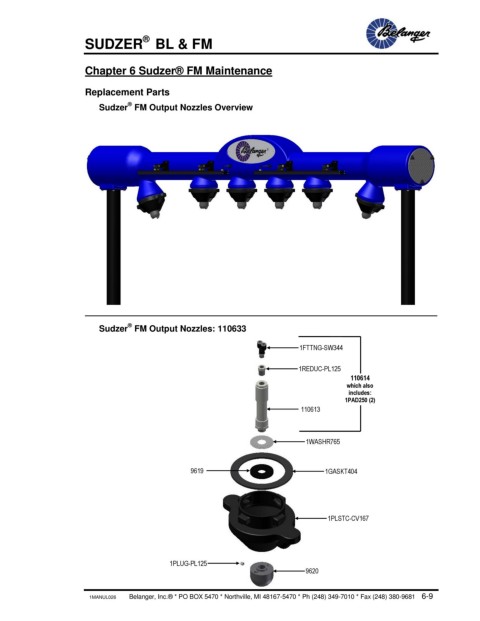

Page 93 - Sudzer® BL & FM
P. 93
®
SUDZER BL & FM
Complete Assembly Chapter 6 Sudzer® FM Maintenance
Replacement Parts
®
Sudzer FM Output Nozzles Overview
®
Sudzer FM Output Nozzles: 110633
1FTTNG-SW344
1REDUC-PL125
110614
which also
includes:
1PAD250 (2)
110613
1WASHR765
9619 1GASKT404
1PLSTC-CV167
1PLUG-PL125
9620
1MANUL026 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 6-9
