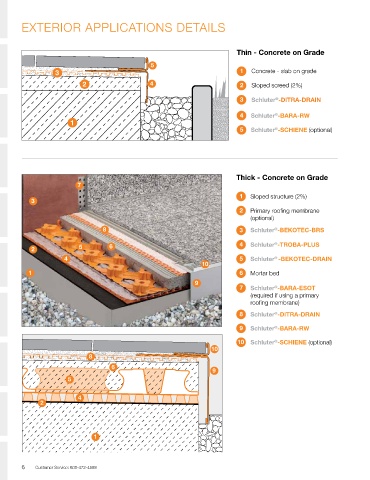

EXTERIOR APPLICATIONS DETAILS

Thin - Concrete on Grade

5
3 1 Concrete - slab on grade
2 4 2 Sloped screed (2%)

3 Schluter -DITRA-DRAIN
®
4 Schluter -BARA-RW
®
1
5 Schluter -SCHIENE (optional)
®

Thick - Concrete on Grade
7

1 Sloped structure (2%)
3
2 Primary roofing membrane
(optional)
8 3 Schluter -BEKOTEC-BRS
®

®
2 5 6 4 Schluter -TROBA-PLUS
4 5 Schluter -BEKOTEC-DRAIN
®
10
1 6 Mortar bed
9
7 Schluter -BARA-ESOT
®
(required if using a primary
roofing membrane)
8 Schluter -DITRA-DRAIN
®
9 Schluter -BARA-RW
®
10 Schluter -SCHIENE (optional)
®
10
8
6
9
5

4
2

1
