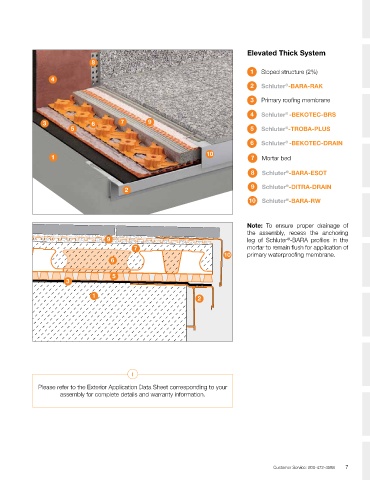

Elevated Thick System
8
1 Sloped structure (2%)
4
2 Schluter -BARA-RAK
®
3 Primary roofing membrane

4 Schluter -BEKOTEC-BRS
®
3 6 7 9
5 5 Schluter -TROBA-PLUS
®
6 Schluter -BEKOTEC-DRAIN
®
10
1 7 Mortar bed

8 Schluter -BARA-ESOT
®
9 Schluter -DITRA-DRAIN
®
2
10 Schluter -BARA-RW
®

Note: To ensure proper drainage of
the assembly, recess the anchoring
9 leg of Schluter -BARA profiles in the
®
7 mortar to remain flush for application of
10 primary waterproofing membrane.
6

5
3

1 2

i

Please refer to the Exterior Application Data Sheet corresponding to your
assembly for complete details and warranty information.
