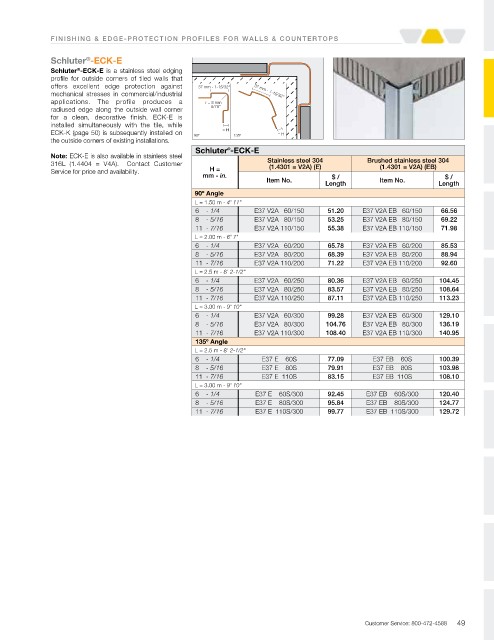

Page 51 - schluter 2019 Price List DJC final(1)_Neat

F INI S H I N G & EDG E-PROT ECT ION PROF I LES FOR WALL S & COUNTERTOPS

®
Schluter -ECK-E
®
Schluter -ECK-E is a stainless steel edging
profile for outside corners of tiled walls that
offers excellent edge protection against 37 mm - 1-15/32"
mechanical stresses in commercial/industrial 37 mm - 1-15/32"
applications. The profile produces a r = 8 mm
radiused edge along the outside wall corner 5/16"
for a clean, decorative finish. ECK-E is
installed simultaneously with the tile, while
= H
ECK-K (page 50) is subsequently installed on 90º 135º = H
the outside corners of existing installations.
®
Schluter -ECK-E
Note: ECK-E is also available in stainless steel
316L (1.4404 = V4A). Contact Customer Stainless steel 304 Brushed stainless steel 304
(1.4301 = V2A) (E)
(1.4301 = V2A) (EB)
Service for price and availability. H =
mm - in. $ / $ /
Item No. Item No.
Length Length
90º Angle
L = 1.50 m - 4' 11"
6 - 1/4 E37 V2A 60/150 51.20 E37 V2A EB 60/150 66.56
8 - 5/16 E37 V2A 80/150 53.25 E37 V2A EB 80/150 69.22
11 - 7/16 E37 V2A 110/150 55.38 E37 V2A EB 110/150 71.98
L = 2.00 m - 6' 7"
6 - 1/4 E37 V2A 60/200 65.78 E37 V2A EB 60/200 85.53
8 - 5/16 E37 V2A 80/200 68.39 E37 V2A EB 80/200 88.94
11 - 7/16 E37 V2A 110/200 71.22 E37 V2A EB 110/200 92.60
L = 2.5 m - 8' 2-1/2"
6 - 1/4 E37 V2A 60/250 80.36 E37 V2A EB 60/250 104.45
8 - 5/16 E37 V2A 80/250 83.57 E37 V2A EB 80/250 108.64
11 - 7/16 E37 V2A 110/250 87.11 E37 V2A EB 110/250 113.23
L = 3.00 m - 9' 10"
6 - 1/4 E37 V2A 60/300 99.28 E37 V2A EB 60/300 129.10
8 - 5/16 E37 V2A 80/300 104.76 E37 V2A EB 80/300 136.19
11 - 7/16 E37 V2A 110/300 108.40 E37 V2A EB 110/300 140.95
135º Angle
L = 2.5 m - 8' 2-1/2"
6 - 1/4 E37 E 60S 77.09 E37 EB 60S 100.39
8 - 5/16 E37 E 80S 79.91 E37 EB 80S 103.98
11 - 7/16 E37 E 110S 83.15 E37 EB 110S 108.10
L = 3.00 m - 9' 10"
6 - 1/4 E37 E 60S/300 92.45 E37 EB 60S/300 120.40
8 - 5/16 E37 E 80S/300 95.84 E37 EB 80S/300 124.77
11 - 7/16 E37 E 110S/300 99.77 E37 EB 110S/300 129.72

Customer Service: 800-472-4588 49
