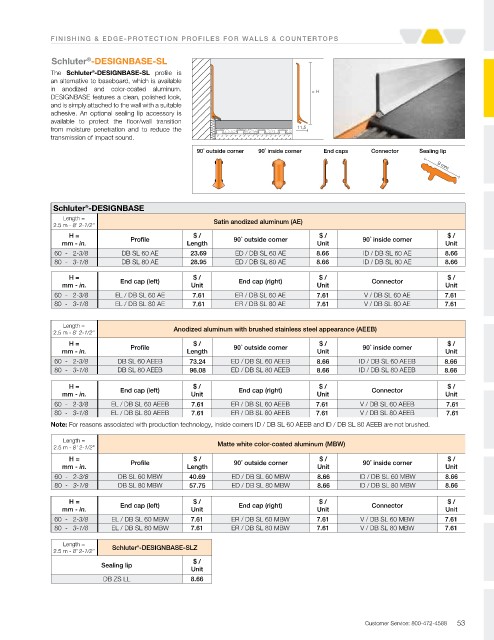

Page 55 - schluter 2019 Price List DJC final(1)_Neat

F INI S H I N G & EDG E-PROT ECT ION PROF I LES FOR WALL S & COUNTERTOPS

®
Schluter -DESIGNBASE-SL
The Schluter -DESIGNBASE-SL profile is
®
an alternative to baseboard, which is available
in anodized and color-coated aluminum. = H
DESIGNBASE features a clean, polished look,
and is simply attached to the wall with a suitable
adhesive. An optional sealing lip accessory is
available to protect the floor/wall transition
from moisture penetration and to reduce the 11,5
transmission of impact sound.
90˚ outside corner 90˚ inside corner End caps Connector Sealing lip

9 mm

/DBSL ED/DBSL ID/DBSL EL/DBSL ER/DBSL
Schluter -DESIGNBASE
®
Length =
2.5 m - 8' 2-1/2" Satin anodized aluminum (AE)
H = $ / $ / $ /
mm - in. Profile Length 90˚ outside corner Unit 90˚ inside corner Unit
60 - 2-3/8 DB SL 60 AE 23.69 ED / DB SL 60 AE 8.66 ID / DB SL 60 AE 8.66
80 - 3-1/8 DB SL 80 AE 28.95 ED / DB SL 80 AE 8.66 ID / DB SL 80 AE 8.66
H = $ / $ / $ /
mm - in. End cap (left) Unit End cap (right) Unit Connector Unit
60 - 2-3/8 EL / DB SL 60 AE 7.61 ER / DB SL 60 AE 7.61 V / DB SL 60 AE 7.61
80 - 3-1/8 EL / DB SL 80 AE 7.61 ER / DB SL 80 AE 7.61 V / DB SL 80 AE 7.61

Length =
2.5 m - 8' 2-1/2" Anodized aluminum with brushed stainless steel appearance (AEEB)
H = $ / $ / $ /
mm - in. Profile Length 90˚ outside corner Unit 90˚ inside corner Unit
60 - 2-3/8 DB SL 60 AEEB 73.24 ED / DB SL 60 AEEB 8.66 ID / DB SL 60 AEEB 8.66
80 - 3-1/8 DB SL 80 AEEB 96.08 ED / DB SL 80 AEEB 8.66 ID / DB SL 80 AEEB 8.66
H = $ / $ / $ /
mm - in. End cap (left) Unit End cap (right) Unit Connector Unit
60 - 2-3/8 EL / DB SL 60 AEEB 7.61 ER / DB SL 60 AEEB 7.61 V / DB SL 60 AEEB 7.61
80 - 3-1/8 EL / DB SL 80 AEEB 7.61 ER / DB SL 80 AEEB 7.61 V / DB SL 80 AEEB 7.61
Note: For reasons associated with production technology, inside corners ID / DB SL 60 AEEB and ID / DB SL 80 AEEB are not brushed.

Length =
2.5 m - 8' 2-1/2" Matte white color-coated aluminum (MBW)
H = $ / $ / $ /
mm - in. Profile Length 90˚ outside corner Unit 90˚ inside corner Unit
60 - 2-3/8 DB SL 60 MBW 40.69 ED / DB SL 60 MBW 8.66 ID / DB SL 60 MBW 8.66
80 - 3-1/8 DB SL 80 MBW 57.75 ED / DB SL 80 MBW 8.66 ID / DB SL 80 MBW 8.66
H = End cap (left) $ / End cap (right) $ / Connector $ /
mm - in. Unit Unit Unit
60 - 2-3/8 EL / DB SL 60 MBW 7.61 ER / DB SL 60 MBW 7.61 V / DB SL 60 MBW 7.61
80 - 3-1/8 EL / DB SL 80 MBW 7.61 ER / DB SL 80 MBW 7.61 V / DB SL 80 MBW 7.61

Length = ®
2.5 m - 8' 2-1/2" Schluter -DESIGNBASE-SLZ
$ /
Sealing lip
Unit
DB ZS LL 8.66
