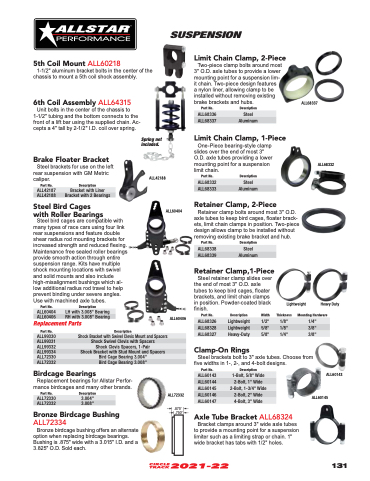

Page 133 - 2021-22 Auto Performance_Circle Track

SUSPENSION
5th Coil Mount ALL60218
1-1/2" aluminum bracket bolts in the center of the
Limit Chain Clamp, 2-Piece
Two-piece clamp bolts around most 3" O.D. axle tubes to provide a lower mounting point for a suspension lim- it chain. Two-piece design features
a nylon liner, allowing clamp to be installed without removing existing brake brackets and hubs.
Part No. Description
Limit Chain Clamp, 1-Piece
One-Piece bearing-style clamp slides over the end of most 3" O.D. axle tubes providing a lower mounting point for a suspension limit chain.
chassis to mount a 5th coil shock assembly.
6th Coil Assembly ALL64315 Unit bolts in the center of the chassis to
1-1/2" tubing and the bottom connects to the front of a lift bar using the supplied chain. Ac- cepts a 4" tall by 2-1/2" I.D. coil over spring.
Brake Floater Bracket
Steel brackets for use on the left rear suspension with GM Metric caliper.
ALL68337
ALL68336
Steel
ALL68337
Aluminum
Spring not included.
ALL42188
ALL60404
ALL68332
Part No.
Description
ALL68332
Steel
ALL68333
Aluminum
Part No.
ALL42187 ALL42188
Description
Bracket with Liner Bracket with 2 Bearings
Steel Bird Cages
with Roller Bearings
Steel bird cages are compatible with many types of race cars using four link rear suspensions and feature double shear radius rod mounting brackets for Maintenance free sealed roller bearings provide smooth action through entire suspension range. Kits have multiple shock mounting locations with swivel and solid mounts and also include high-misalignment bushings which al- low additional radius rod travel to help prevent binding under severe angles. Use with machined axle tubes.
Retainer Clamp, 2-Piece
Retainer clamp bolts around most 3" O.D. - ets, limit chain clamps in position. Two-piece design allows clamp to be installed without removing existing brake bracket and hub.
Part No.
Description
ALL68338
Steel
ALL68339
Aluminum
Part No.
ALL60404 ALL60406
Description
LH with 3.008" Bearing RH with 3.008" Bearing
Retainer Clamp,1-Piece
Steel retainer clamp slides over the end of most 3" O.D. axle brackets, and limit chain clamps in position. Powder-coated black
Lightweight
Heavy Duty
Replacement Parts
Part No.
Birdcage Bearings
Description
ALL60406
Part No.
Description
Width
Thickness
Mounting Hardware
ALL68326
Lightweight
1/2"
1/8"
1/4"
ALL68328
Lightweight
5/8"
1/8"
3/8"
ALL68327
Heavy-Duty
5/8"
1/4"
3/8"
ALL99330
Shock Bracket with Swivel Clevis Mount and Spacers
ALL99331
Shock Swivel Clevis with Spacers
ALL99332
Shock Clevis Spacers, 1-Pair
ALL99334
Shock Bracket with Stud Mount and Spacers
ALL72330
Bird Cage Bearing 3.004"
ALL72332
Bird Cage Bearing 3.008"
Clamp-On Rings
Steel brackets bolt to 3" axle tubes. Choose from

Part No.
Description
ALL60143
1-Bolt, 5/8" Wide
ALL60144
2-Bolt, 1" Wide
ALL60145
2-Bolt, 1-3/4" Wide
ALL60146
2-Bolt, 2" Wide
ALL60147
4-Bolt, 3" Wide
ALL60143
Replacement bearings for Allstar Perfor- mance birdcages and many other brands.
Part No.
ALL72330 ALL72332
Description
3.004" 3.008"
ALL72332
ALL60145
Bronze Birdcage Bushing
ALL72334
Bronze birdcage bushing offers an alternate option when replacing birdcage bearings. Bushing is .875" wide with a 3.015" I.D. and a 3.825" O.D. Sold each.
Axle Tube Bracket ALL68324 Bracket clamps around 3" wide axle tubes
to provide a mounting point for a suspension limiter such as a limiting strap or chain. 1" wide bracket has tabs with 1/2" holes.
TRACK
CIRCLE 2021-22
131
