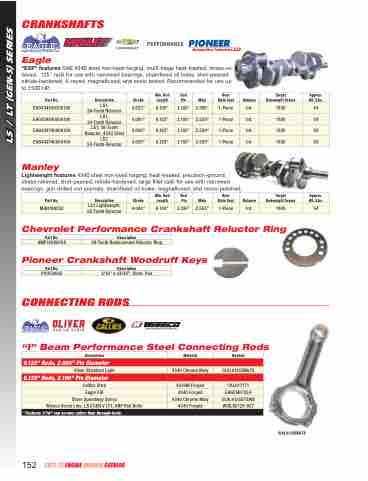

Page 154 - 2021-22_EngineCatalogAP

CRANKSHAFTS
Eagle
“ESP” features SAE 4340 steel non-twist forging, multi-stage heat-treated, stress-re- lieved, .125" radii for use with narrowed bearings, chamfered oil holes, shot-peened, nitride-hardened, X-rayed, magnafluxed, and sonic tested. Recommended for use up to 1500 HP.
Part No. Description Stroke
EAG434636226100 LS1, 3.622" 24-Tooth Reluctor
EAG434640006100 LS1, 4.000" 24-Tooth Reluctor
EAG434740006100 LS1, 58-Tooth 4.000" Reluctor, 4340 Steel
EAG442740006100 LS7, 4.000" 58-Tooth Reluctor
Manley
Min. Rod Rod
Length Pin Main
6.100" 2.100" 2.559" 6.125" 2.100" 2.559" 6.125" 2.100" 2.559" 6.125" 2.100" 2.559"
Rear
Main Seal Balance
1-Piece Int. 1-Piece Int. 1-Piece Int. 1-Piece Int.
Target Bobweight Grams
Approx. Wt./Lbs.
LS / LT (GEN-5) SERIES
Lightweight features 4340 steel non-twist forging, heat-treated, precision-ground, stress-relieved, shot-peened, nitride-hardened, large fillet radii for use with narrowed bearings, gun-drilled rod journals, chamfered oil holes, magnafluxed, and micro-polished.
Min. Rod Rod Part No. Description Stroke Length Pin
MAN190058 LS1 Lightweight, 4.000" 6.100" 2.100" 58-Tooth Reluctor
Main
2.559"
Rear
Main Seal Balance
1-Piece Int.
Target Bobweight Grams
Approx. Wt./Lbs.
Chevrolet Performance Crankshaft Reluctor Ring
Part No. Description
GMP12586768 58-Tooth Replacement Reluctor Ring
Pioneer Crankshaft Woodruff Keys
Part No. Description
PIO839065 3/16" x 23/32", Steel, Pair
CONNECTING RODS
“I” Beam Performance Steel Connecting Rods
Description
6.125" Rods, 2.000" Pin Diameter
Oliver Standard Light
6.125" Rods, 2.100" Pin Diameter
Callies Ultra
Eagle FSI
Oliver Speedway Series
Wiseco Boost Line, LS1/GEN V LT1, ARP Rod Bolts
† Features 7/16" cap screws rather than through-bolts.
Material
4340 Chrome Moly
4330M Forged 4340 Forged 4340 Chrome Moly 4340 Forged
Bushed
OLVL6125SMLT8
CALU17171 EAGFSI6125O OLVL6125STSW8 WISLS6125-927
152 2021-22 ENGINE BUILDER CATALOG
1800 54 1800 54 1800 59 1800 55
1800 54
OLVL6125SMLT8
