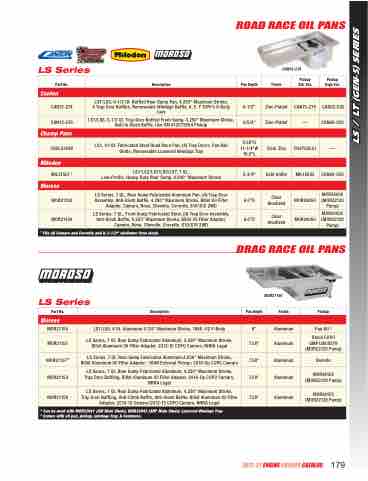

Page 181 - 2021-22_EngineCatalogAP

ROAD RACE OIL PANS
LS Series
CAN15-274
Part No.
Description
Pan Depth
Finish
Pickup Std. Vol.
Pickup High Vol.
Canton
CAN15-274
LS1/LS6, 6-1/2 Qt. Baffled Rear Sump Pan, 4.250" Maximum Stroke, 4 Trap Door Baffles, Removeable Windage Baffle, A, F, Y 1970's X-Body Cars
6-1/2"
Zinc-Plated
CAN15-275
CAN20-020
CAN15-276
LS1/LS6, 6-1/2 Qt. Trap Door Baffled Front Sump, 4.250" Maximum Stroke, Bolt-In Slosh Baffle, Use GM #12572654 Pickup
5/5/8"
Zinc-Plated
—
CAN20-020
Champ Pans
CHALS1060
LS1, 10-Qt. Fabricated Steel Road Race Pan, (4) Trap Doors, Pan Rail Girdle, Removeable Louvered Windage Tray
5.50"D 11-1/4"W 16.0"L
Clear Zinc
CHA750LS1
—
Milodon
MIL31507 †
LS1/LS2/LS3/LS6/LS7, 7 Qt.,
Low-Profile, Heavy-Duty Rear Sump, 4.000" Maximum Stroke
5-3/8"
Gold Iridite
MIL18292
CAN20-020
Moroso
MOR21152
LS Series, 7 Qt., Rear Sump Fabricated Aluminum Pan, (4) Trap Door Assembly, Anti-Slosh Baffle, 4.250" Maximum Stroke, Billet Oil Filter Adapter, Camaro, Nova, Chevelle, Corvette, S10/S15 2WD
6.0"D
Clear Anodized
MOR24050
MOR24050 (MOR22120 Pump)
MOR21159
LS Series, 7 Qt., Front Sump Fabricated Steel, (4) Trap Door Assembly, Anti-Slosh Baffle, 4.250" Maximum Stroke, Billet Oil Filter Adapter, Camaro, Nova, Chevelle, Corvette, S10/S15 2WD
6.0"D
Clear Anodized
MOR24050
MOR24050 (MOR22120 Pump)
† Fits all Camaro and Corvette and is 2-1/2" shallower than stock.
DRAG RACE OIL PANS
MOR21150
LS Series
Part No.
Description
Pan Depth
Finish
Pickup
Moroso
MOR21150
LS1/LS6, 6 Qt. Aluminum 4.125" Maximum Stroke, 1998 -02 F-Body
6"
Aluminum
Pan Kit B
MOR21151
LS Series, 7 Qt. Rear Sump Fabricated Aluminum, 4.250" Maximum Stroke, Billet Aluminum Oil Filter Adapter, 2012-15 COPO Camaro, NHRA Legal
7.50"
Aluminum
Stock COPO GMP12608579 (MOR22120 Pump)
MOR21157 A
LS Series, 7 Qt. Rear Sump Fabricated Aluminum,4.250" Maximum Stroke, Billet Aluminum Oil Filter Adapter, -16AN External Pickup; 2016-Up COPO Camaro
7.50"
Aluminum
Remote
MOR21153
LS Series, 7 Qt. Rear Sump Fabricated Aluminum, 4.250" Maximum Stroke, Trap Door Baffling, Billet Aluminum Oil Filter Adapter, 2016-Up COPO Camaro, NHRA Legal
7.50"
Aluminum
MOR24153 (MOR22120 Pump)
MOR21158
LS Series, 7 Qt. Rear Sump Fabricated Aluminum, 4.250" Maximum Stroke, Trap Door Baffling, Anti-Climb Baffle, Anti-Slosh Baffle, Billet Aluminum Oil Filter Adapter, 2010-15 Camaro/2012-15 COPO Camaro, NHRA Legal
7.50"
Aluminum
MOR24153 (MOR22120 Pump)
A Can be used with MOR22941 (GM Main Studs), MOR22943 (ARP Main Studs) Louvered Windage Tray. B Comes with oil pan, pickup, windage tray, & hardware.
2021-22 ENGINE BUILDER CATALOG 179
LS / LT (GEN-5) SERIES
